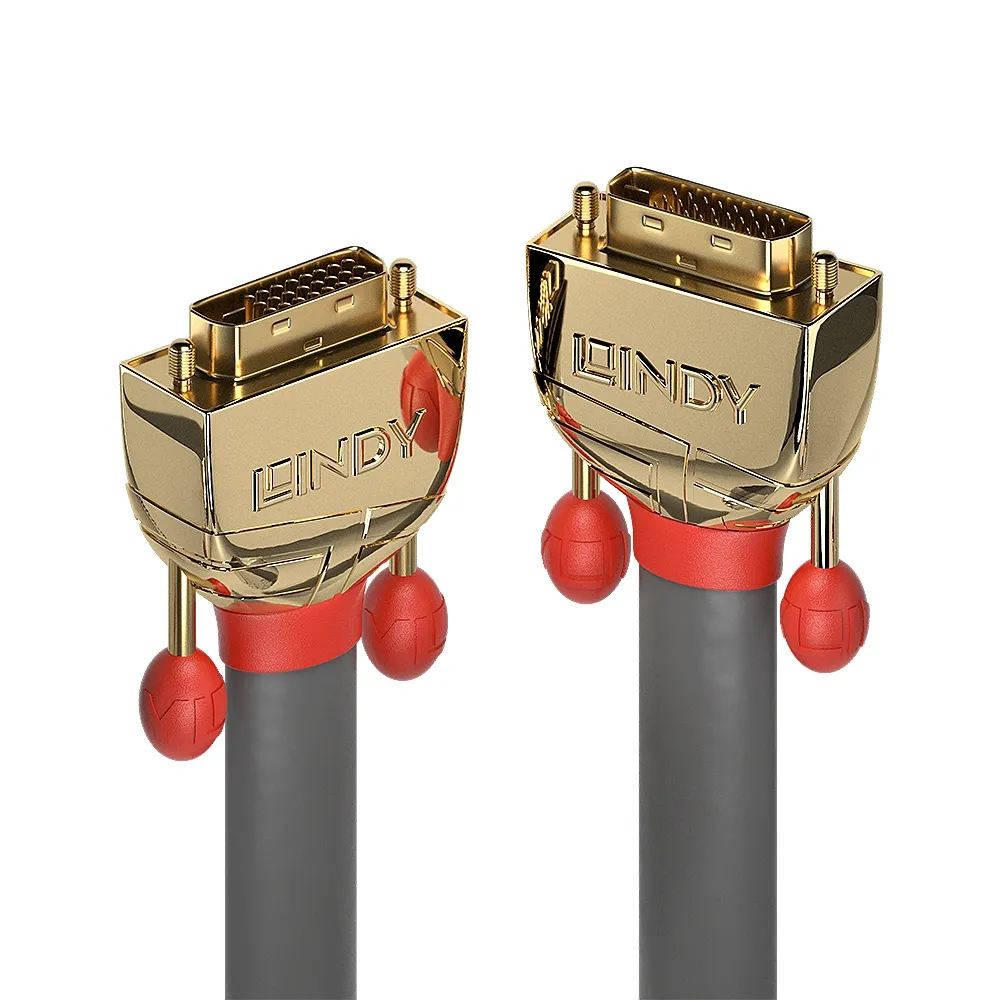

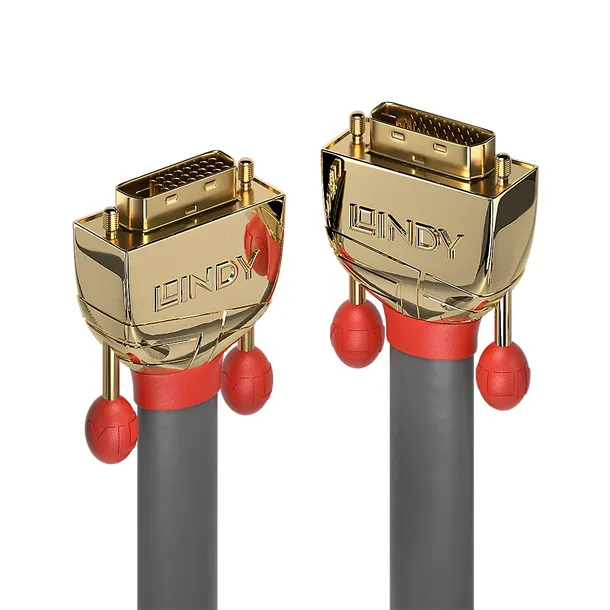

20m DVI-D SLD Dual Link Cable, Gold Line

20m DVI-D SLD Dual Link Cable, Gold Line

Numer Katalogowy Produktu: L36208

Numer EAN: 4002888362085

OPIS PRODUKTU:Connectors

• Connector A: DVI-D Male (Dual Link)
• Connector B: DVI-D Male (Dual Link)
• Housing Material: 24K Gold Plated Metal
• Connector Plating: 24K Gold 3?m
• Pin Construction: Phosphor Bronze
• Pin Plating: 24K Gold 15?m
• Dimensions (approx.) WxDxH: 39.5x44.5x16.5mm (1.55x1.73x0.65in)

Cable Construction

• Length: 20m (65.62ft)
• Standard: DVI-D Dual Link
• Colour: Grey
• Type: Oval
• Jacket Diameter: 11.5x18mm (0.45x0.71in)
• Jacket Material: PVC
• Conductor Material: OFC Copper
• Conductor Gauge: 24AWG
• Shielding: Copper Braid 85%

Specifications

• Supported Bandwidth: 9.9 Gbps
• Maximum Resolution: 2560x1600@60Hz
• Nominal Attenuation: 1 - 825Mhz < 8db
• Minimum Bend Radius: 126mm (4.96in)
• Operating Temperature: -20°C - 80°C (-4°F - 176°F)
• Storage Temperature: -25°C - 85°C (-13°F - 185°F)

Miscellaneous

• Packaging Type: Polybag
• Warranty (Years): 25
• Product Compliance: RoHS, REACH, UL

Purchasing Information

• No. 36208
• EAN: 4002888362085

This product is also available in other lengths

• 36207 - 15m (49.21ft)
• 36209 - 25m (82.02ft)
