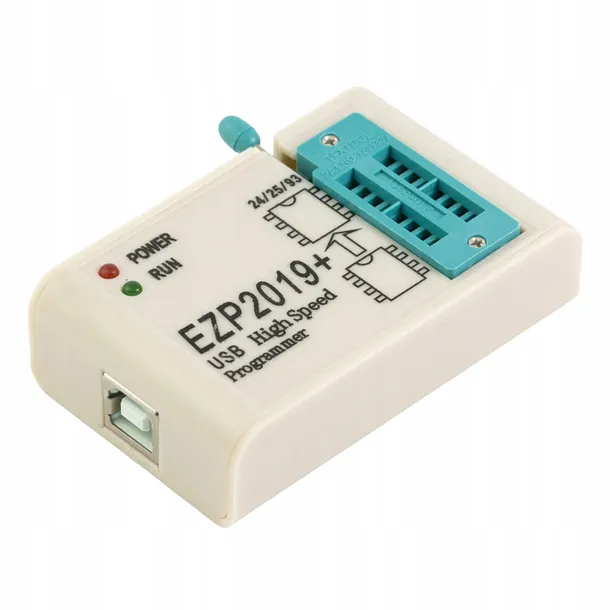

Programator EZP2019+ EEPROM Flash BIOS IMMO

Programator EZP2019+ BIOS FLASH EEPROM

Prosty i skuteczny uniwersalny programator USB EZP2019+. Obsługuje szeregowe pamięci EEPROM oraz FLASH serii 24, 25 i 93.

Pamięci szeregowe programowane są przez interfejs SPI lub I2C. Obydwa są obsługiwane przez programator.

Bardzo duży zestaw, który zaprogramuje wiele różnych pamięci na 5V, 3,3V! Samodzielnie rozpoznaje rodzaj pamięci oraz napięcie, z jakim ma ona pracować. Nie musisz się martwić o uszkodzenie układu.

Obsługuje układy:

• 24XXX, czyli pamięci EEPROM
• 25XXX, czyli pamięci FLASH lub EEPROM
• 93XXX, czyli pamięci EEPROM Automotive
• Automatyczne wykrywanie układu

Z pomocą tego programatora zaprogramujesz między innymi:

• BIOS
• Immobilizer
• Licznik samochodowy
• Pamięci Flash SPI
• Pamięci EEPROM SPI

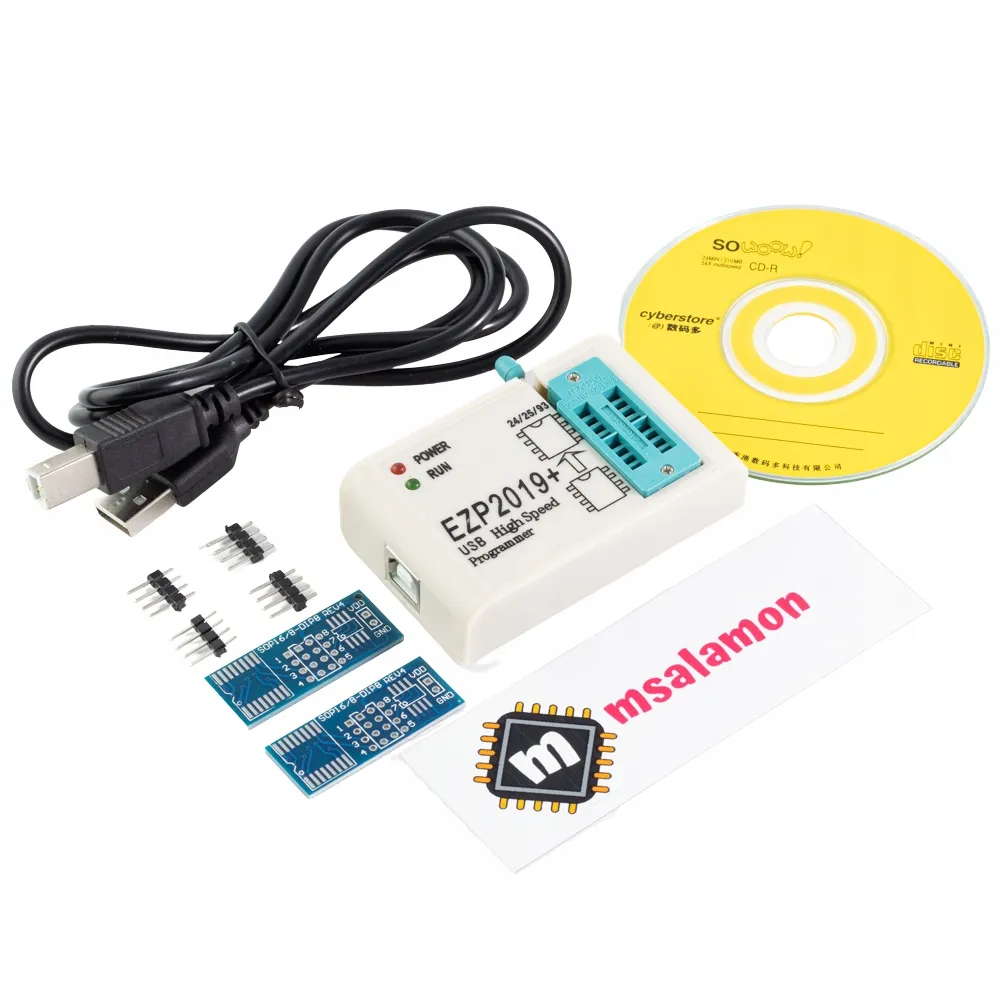

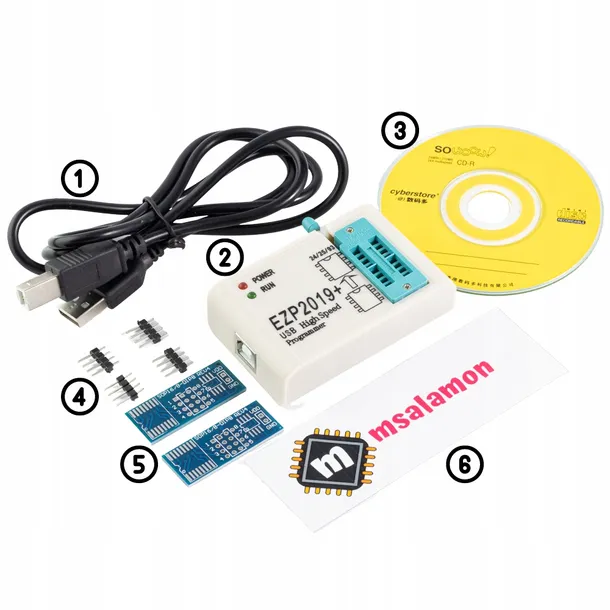

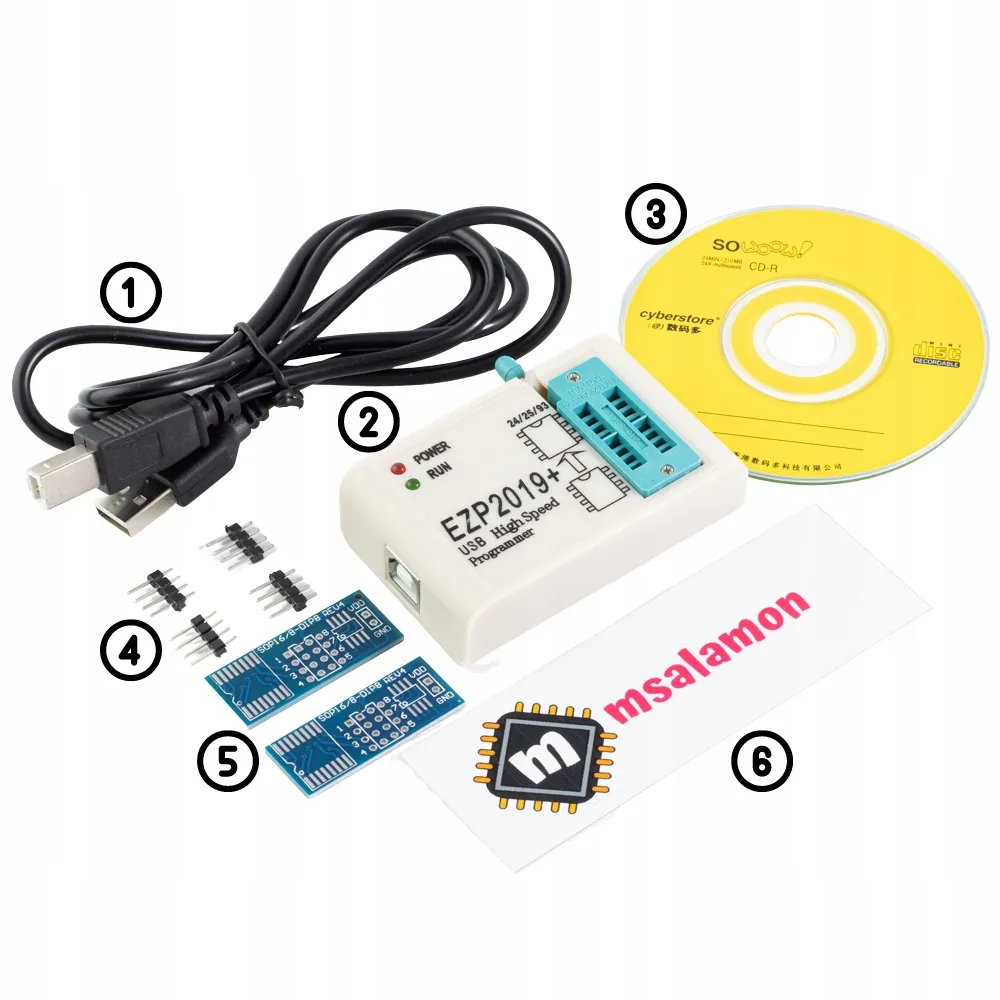

Bogaty zestaw, w którym znajdują się:

1️⃣ Przewód USB

2️⃣ Programator EZP2019+ z podstawką ZIF-16

3️⃣ Płyta z oprogramowaniem (do pobrania po zakupie)

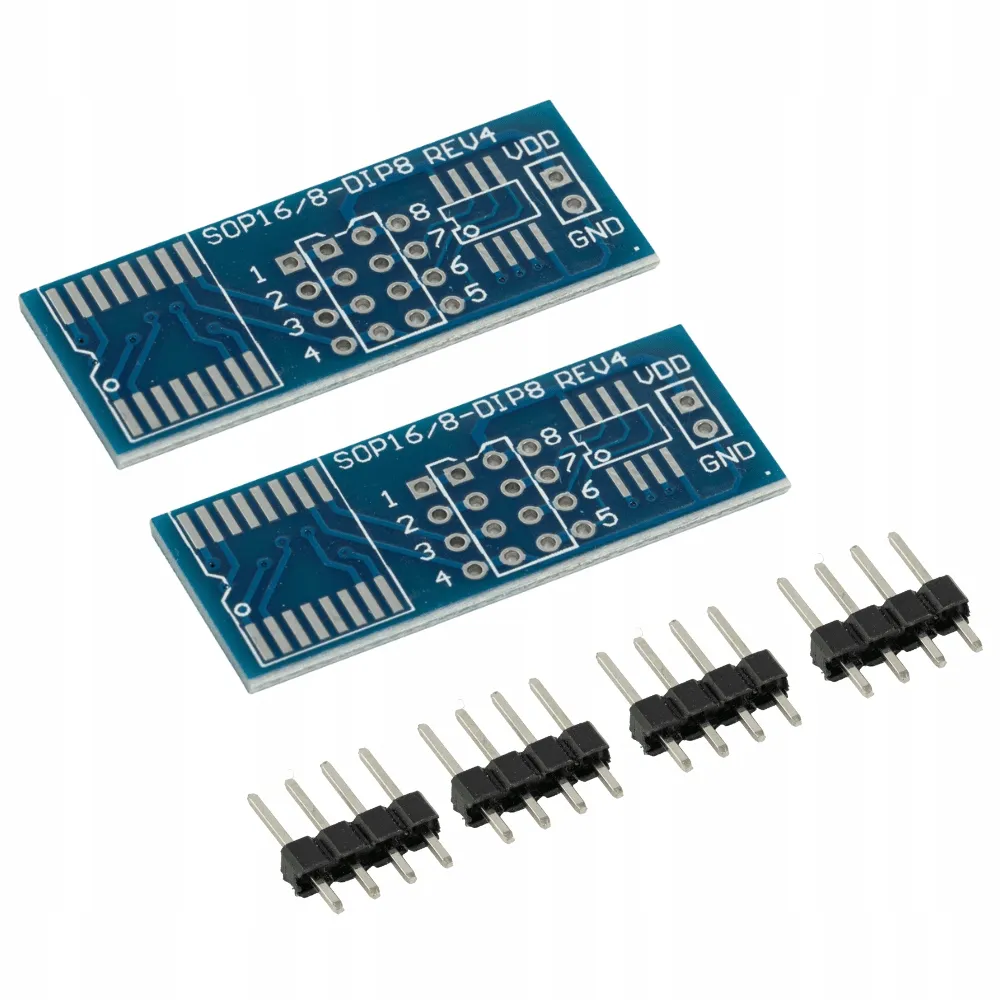

4️⃣ i 5️⃣ 2x adapter lutowany dla obudów: SOP8, SOP16, SOIC8

6️⃣ Naklejka

OPROGRAMOWANIE, STEROWNIKI, INSTRUKCJA

Po zakupie do pobrania jest paczka z potrzebnymi rzeczami. Znajdują się w niej:

• Sterowniki do EPZ2019+ (Windows + Mac)

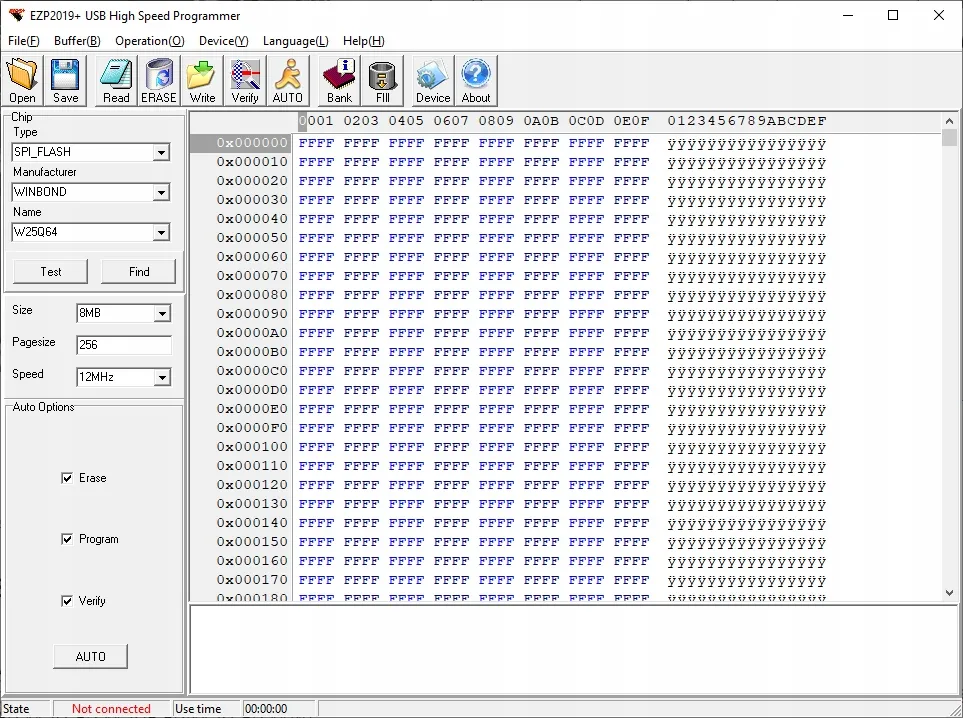

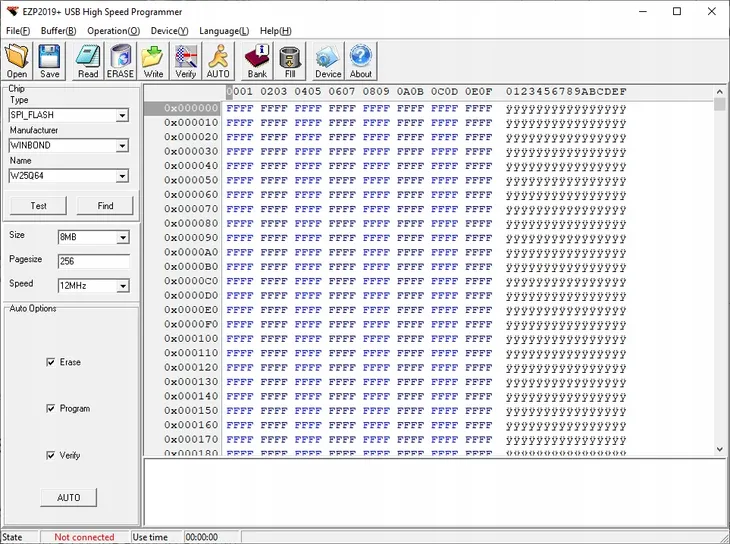

• Oprogramowanie EPZ2019+ (Windows + Mac)
• Instrukcja programowania w języku angielskim

NAJPOPULARNIEJSZE Z OBSŁUGIWANYCH PAMIĘCI:

25XXX SPI FLASH

• AMIC: A25L05P, A25L512, A25L010, A25L10P, A25L020, A25L20P, A25L040, A25L40P, A25L080, A25L80P, A25L016, A25L16P, A25L032
• ATMEL: AT25F512, AT25F512A, AT25F512B, AT25F1024, AT25F1024A, AT25FS010, AT25DF021, AT25F2048, AT25DF041A, AT25F4096, AT25FS040, AT26F004, AT26DF081A, AT25DF161, AT26DF161, AT26DF161A, AT25DF321, AT25DF321A, AT26DF321, AT25DF641
• EON: EN25F05, EN25LF05, EN25P05, EN25D10, EN25F10, EN25F20, EN25F20, EN25F20, EN25Q80, EN25T80, EN25B16, EN25B16T, EN25D16, EN25F16, EN25Q16, EN25T16, EN25B32, EN25B32T, EN25F32, EN25P32, EN25Q32, EN25B64, EN25B64T, EN25F64, EN25P64, EN25Q64, EN25F128 ES25P10, ES25P20, ES25M40, ES25M40A, ES25P40, ES25M80, ES25M80A, ES25P80, ES25M16, ES25M16A, ES25P16, ES25P32
• ESMT: F25L004A, F25L04UA, F25L008A, F25L08PA, F25L016A, F25L16PA, F25L32PA, F25L32QA
• MXIC: MX25L512, MX25V512, MX25L1005, MX25L2005, MX25L4005A, MX25V4005, MX25L8005, MX25V8005, MX25L1605D, MX25L1635D, MX25L3205D, MX25L3225D, MX25L3235D, MX25L3237D, MX25L6405D, MX25L12805D
• NexFlash: NX25P10, NX25P20, NX25P40, NX25P80, NX25P16, NX25P32
• PMC: PM25LV512A, PM25LV010A, PM25LV020, PM25LV040, PM25LV080B, PM25LV016B
• SAIFUN: SA25F005, SA25F010, SA25F020, SA25F040, SA25F080, SA25F160, SA25F320
• SPANSION: S25FL004A, S25FL008A, S25FL016A, S25FL032A, S25FL064A
• SST: SST25VF512, SST25VF512A, SST25VF010, SST25VF010A, SST25VF020, SST25VF020A, SST25VF040, SST25VF040A, SST25VF040B, SST25VF080B, SST25VF016B, SST25VF032B, SST25VF064C
• ST: M25P05A, M25P10A, M25PE10, M25P20, M25PE20, M25P40, M25PE40, M25P80, The M25PE80, M25PX80, M25P16, M25PE16 , M25PX16, M25P32, M25PX32, M25P64, M25PX64, M25P128
• WINBOND:W25P10, W25X10, W25X10A, W25X10AL, W25X10L, W25P20, W25X20, W25X25, W40, W40X25A, W25X20L, W40 W25X80AL, W25X80L, W25P16, W25X16, W25P32, W25X32, W25X64

24XXX EEPROM

• ATMEL:AT24C01, AT24C01A, AT24C01B, AT24C02, AT24C02A, AT24C02B, AT24C04, AT24C04A, AT24C04B, AT24C08, AT24C08A, AT24C08B, AT24C24, ATC64, AT24C6464, AT24C16B, AT24C24, AT24C32, AT24C64 AT24C256, AT24C256A, AT24C256B, AT24C512, AT24C512A, AT24C512B, AT24C1024, AT24C1024A, AT24C1024B
• CATALYST:CAT24C01, CAT24WC01, CAT24C02, CAT24WC02, CAT24C04, CAT24WC04, CAT24C08, CAT24WC08, CAT24C16, CAT24WC16, CAT24C32, CAT24WC32, CAT24C64, CAT24WC64, CAT24C24 CAT, CAT24C24, CAT24C24, CAT24C128, CAT24C
• COMMON: 24C00 3V, 24C00 5V, 24C01 3V, 24C01 5V, 24C02 3V, 24C02 5V, 24C04 3V, 24C04 5V, 24C08 3V, 24C08 5V, 24C16 3V, 24C16 5V, 24C32 3V, 24C32 5V, 24C64 3V, 24C64 5, 24C128 3V, 24C128 5V, 24C256 3V, 24C256 5V, 24C512 3V, 24C512 5V, 24C1024 3V, 24C1024 5V
• FAIRCHILD: FM24C01L, FM24C02L, FM24C03L, FM24C04L, FM24C05L, FM24C08L, FM24C09L, FM24C16L, FM24C17L, FM24C32L, FM24C64L, FM24C128L, FM24C512L, FM24C512L, FM24C256L,
• HOLTEK:HT24C01, HT24LC01, HT24C02, HT24LC02, HT24C04, HT24LC04, HT24C08, HT24LC08, HT24C16, HT24LC16, HT24C32, HT24LC32, HT24C64, HT24LC64, HT24C128 HT24C256, HT24 256, HT24C128, HT24
• ISSI: IS24C01, IS24C02, IS24C04, IS24C08, IS24C16, IS24C32, IS24C64, IS24C128, IS24C256, IS24C512, IS24C1024
• MICROCHIP: 24AA00, 24C00, 24LC00, 24AA01, 24AA014, 24C01C, 24LC014, 24LC01B, 24AA02, 24LC02B, 24AA024, 24AA025, 24AA04, 24C02C, 24LC024, 24LC025, 24LC04B, 24AA08, 24LC08B, 24LC16, 24LC16B, 24LC16B 24FC64, 24LC64, 24AA128, 24FC128, 24LC128, 24AA256, 24FC256, 24LC256, 24AA512, 24FC512, 24LC512, 24AA1024
• NSC: NSC24C02, NSC24C02L, NSC24C64 RAMTRON: FM24C04A, FM24CL04, FM24C16A, FM24CL16, FM24C64, FM24CL64, FM24C256, FM24CL256, FM24C512
• ROHM: BR24C01, BR24L01, BR24C02, BR24L02, BR24C04, BR24L04, BR24C08, BR24L08, BR24C16, BR24L16, BR24C32, BR24L32, BR24C64, BR24L64
• ST: ST24C01, ST24C02, ST24C04, ST24C08, ST24C16, ST24C32, ST24C64 XICOR: X24C01, X24C02, X24C04, X24C08, X24C16

93XXX EEPROM

• AKM: AK93C45AV, AK93C55AV, AK93C65AV, AK93C75AV
• ATC: ATC93C46, ATC93LC46 (16bit), ATC93LC46 (16bit) -SOP8, ATC93LC46 (8bit), ATC93LC46 (8bit) -SOP8, ATC93C56, ATC93LC56 (16bit), ATC93LC56 (16bit) -SOP8, ATC93LC56 (8bit), ATC93 ) -SOP8, ATC93C66, ATC93LC66 (16bit), ATC93LC66 (16bit) -SOP8, ATC93LC66 (8bit), ATC93LC66 (8bit) – SOP8
• ATMEL: AT93C46 (16bit), AT93C46 (16bit) -SOP8, AT93C46 (8bit), AT93C46 (8bit) -SOP8, AT93C46A, AT93C56 (16bit), AT93C56 (16bit) -SOP8, AT93C56 (8bit), AT93C56 (8bit)- SOP8, AT93C57 (16bit), AT93C57 (16bit) -SOP8, AT93C57 (8bit), AT93C57 (8bit) -SOP8, AT93C66 (16bit), AT93C66 (16bit) -SOP8, AT93C66 (8bit), AT93C66 (8bit) -SOP8, AT93C86 (16bit), AT93C86 (16bit) – SOP8, AT93C86 (8bit), AT93C86 (8bit) -SOP8
• CATALYST: CAT93C46 (16bit), CAT93C46 (8bit), CAT93C46A, CAT93C46I, CAT93C56 (16bit), CAT93C56 (8bit), CAT93C56A, CAT93C57 (16bit), CAT93C57 (16bit) -SOP8, CAT93Cbit (9366) (1666) CAT93C66A, CAT93C86 (16bit), CAT93C86 (8bit)
• COMMON: 93C46 (16bit), 93C46 (8bit), 93C56 (16bit), 93C56 (8bit), 93C66 (16bit), 93C66 (8bit), 93C86 (16bit), 93C86 (8bit)
• EXEL: XL93C06, XL93C46, XL93CS46, XL93LC46, XL93C56, XL93LC56, XL93C66, XL93LC66
• FAIRCHILD: FM93C06AM8 (16bit), FM93C06AM8 (8bit), FM93C06M8, FM93C06N, FM93C46AM8 (16bit), FM93C46AM8 (8bit), FM93C46AN (16bit), FM93C46AN (8bit), FM93C16 (16bit), FM93CS1616 (16bit) , FM93CS56 (16bit), FM93C66AM8 (16bit), FM93C66AM8 (8bit), FM93C66AN (16bit), FM93C66AN (8bit), FM93C66B, FM93C66M8 (16bit), FM93C66MT8 (16bit), FM93C16AM (93bit), FM93C16N (16bit) 16bit), FM93C86AM8 (8bit), FM93C86AN (16bit), FM93C86AN (8bit)
• HOLTEK: HT93LC46A (16bit), HT93LC46A (8bit), HT93LC56A (16bit), HT93LC56A (8bit), HT93LC66A (16bit), HT93LC66A (8bit)
• ICT: ICT93C46 (16bit), ICT93C46 (8bit), ICT93C56 (16bit), ICT93C56 (8bit), ICT93C66 (16bit), ICT93C66 (8bit) ISSI: IS93C46 (16bit), IS93C56 (16bit), IS93C66 (16bit)
• MICROCHIP: 93C06 (16bit), 93C06 (16bit) -SOP8, 93AA46 (16bit), 93AA46 (8bit), 93AA46 (8bit) – SOP8, 93C46 (16bit), 93C46 (16bit) -SOP8, 93C46A, 93C46B, 93LC46 (16bit), 93LC46 (16bit) -SOP8, 93LC46 (8bit), 93LC46 (8bit) -SOP8, 93LC46A, 93LC46B, 93LC46B-SOP8, 93AA56 (16bit), 93AA56 (8bit), 93AA56 (8bit) -SOP8, 93C56 (16bit), 93C56 (16bit) -SOP8, 93C56 (8bit), 93C56 (8bit) -SOP8, 93C56A, 93C56A-SOP8, 93C56B, 93C56B-SOP8, 93LC56 (16bit), 93LC56 (16bit) -SOP8, 93LC56 (8bit), 93LC56 (8bit) ) -SOP8, 93LC56A, 93LC56B, 93LC56B-SOP8, 93AA66 (16bit), 93AA66 (8bit), 93AA66 (8bit) -SOP8, 93C66 (16bit), 93C66 (16bit) -SOP8, 93C66 (8bit), 93C66 (8bit) -SOP8, 93C66A, 93C66A-SOP8, 93C66B, 93C66B-SOP8, 93LC66 (16bit), 93LC66 (16bit) -SOP8, 93LC66 (8bit), 93LC66 (8bit) -SOP8, 93LC66A, 93LC66B, 93LC66B-SOP8, 93AA76 (16bit ), 93AA76 (8bit), 93C76 (16bit), 93C76 (8bit), 93LC76 (16bit), 93LC76 (8bit), 93LC76A, 93LC76B, 93AA86 (16bit),93AA86 (8bit), 93C86 (16bit), 93C86 (8bit), 93LC86 (16bit), 93LC86 (8bit), 93LC86A, 93LC86B
• NSC: NSC93C06, NSC93C06-SOP8, NSC93CS06, NSC93C46, NSC93CS46, NSC93C56, NSC93CS56, NSC93S56, NSC93C66, NSC93CS66, NSC93C86
• ROHM: BR93LC46, BR93LC46RF, BR93LC56, BR93LC56RF, BR93LC66, BR93LC66RF
• ST: ST93C06, M93S46, M93S46-SOP8, M93S46-T8, M93S46R, M93S46R-SOP8, M93S46W, M93S46W-SOP8, ST93C46, M93S56, M93S56-SOP8, M93S56R, M93S56R-SOP8, M93S56C, M93S56W, M93S66-SOP8, M93S66R, M93S66R-SOP8, M93S66W, M93S66W-SOP8, ST93C66

25XXX EEPROM

• ATMEL: AT25010, AT25020, AT25040, AT25080, AT25160, AT25320, AT25640, AT25128, AT25256, AT25512
• CATALYST: CAT25C01, CAT25C01P, CAT25C01S, CAT25C01U, CAT25C02P, CAT25C02S, CAT25C02U, CAT25C03P, CAT25C03S, CAT25C03U, CAT25C04P, CAT25C04S, CAT25C04U, CAT25C05P, CAT25C05S, CAT25C05U, CAT25C08P, CAT25C08S, CAT25C08U, CAT25C09P, CAT25C09S, CAT25C09U, CAT25C16P, CAT25C16S, CAT25C16U, CAT25C17P, CAT25C17S, CAT25C17U, CAT25C32P, CAT25C32S, CAT25C33P, CAT25C33S, CAT25C64P, CAT25C64S, CAT25C65P, CAT25C65S, CAT25C128P, CAT25C128S, CAT25C128S
• COMMON: 25010, 25020, 25040, 25080, 25160, 25320, 25640, 25128, 25256, 25512
• MICROCHIP: 25AA040, 25C040, 25LC040, 25AA080, 25C080, 25LC080, 25AA160, 25C160, 25LC160, 25AA320, 25C320, 25LC320, 25AA640, 25C640, 25LC640
• RAMTRON: FM25C160, FM25640, FM25CL64
• ST: ST25C01, ST25W01, ST25C02, ST25W02, ST25C04, ST25W04, ST25C08, ST25W08, ST25C16, ST25W16
• TI: TI2532, TI2532A, TI2564
• XICOR: XC25010, XC25020, XC25040, XC25080, XC25160, XC25320, XC25640, XC25128, XC25256, XC25512
