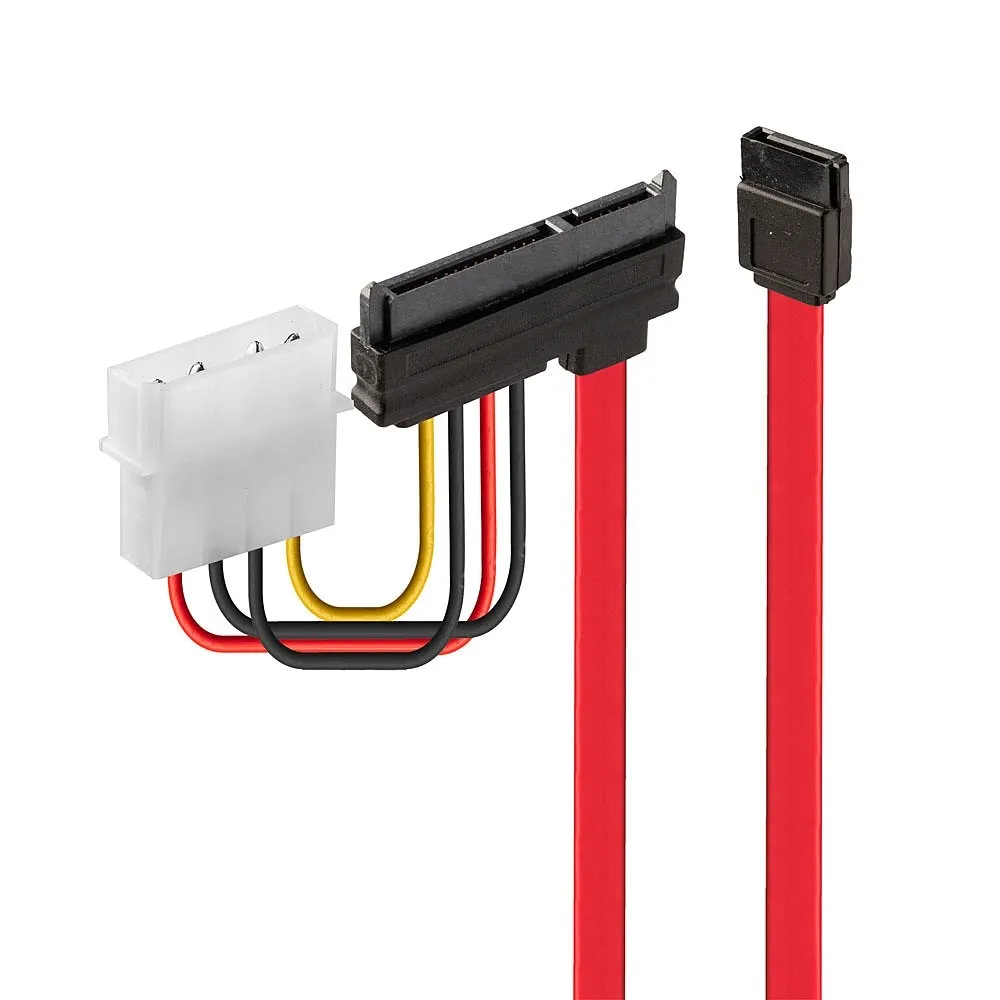

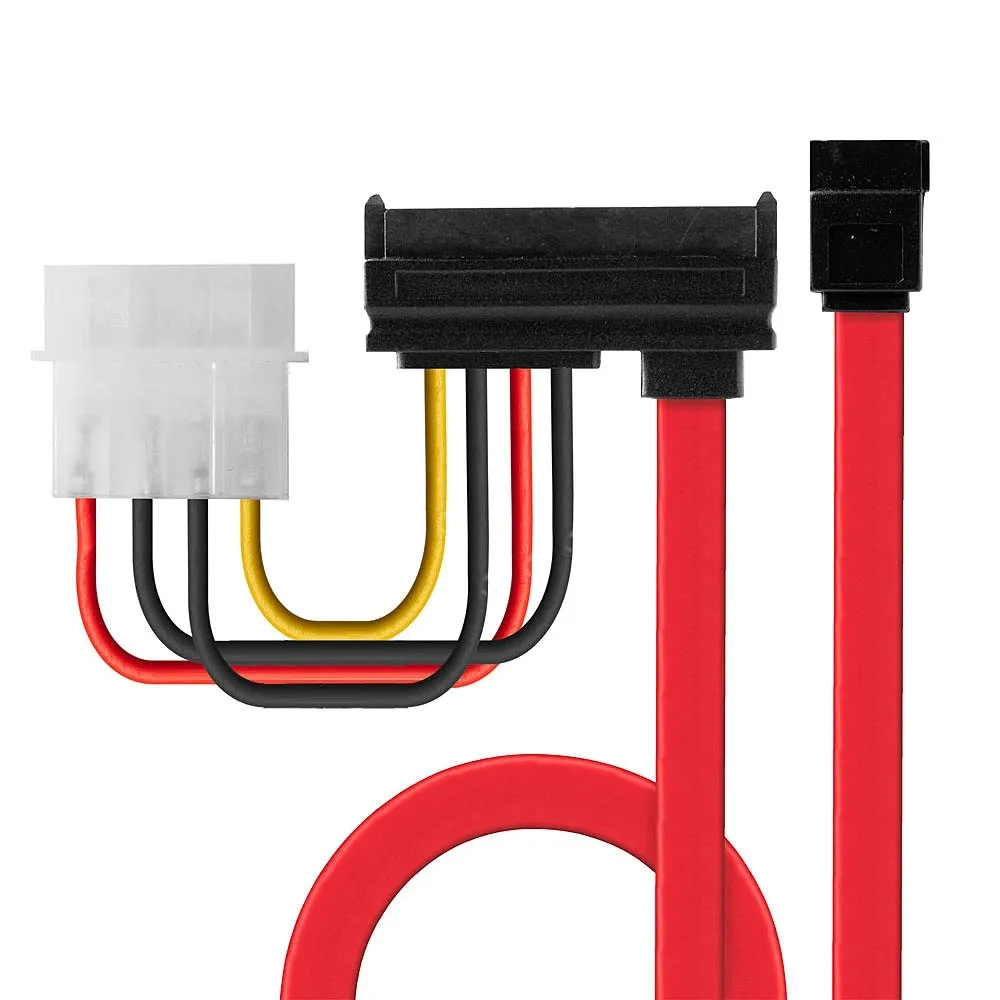

SATA Cable - Combined Data & Power, Internal, 0.5m

SATA Cable - Combined Data & Power, Internal, 0.5m

Numer Katalogowy Produktu: L33365

Numer EAN: 4002888333658

OPIS PRODUKTU:

Connectors:

• Connector A: 7 pin SATA Female + 5.25'' Male (LP4)
• Connector B: 22 pin SATA Female (SFF-8482)
• Housing Material: Plastic (PBT)
• Pin Construction: Phosphor Copper
• Pin Plating: Gold
• Dimensions (approx.) WxDxH:
• A: 14x20x5.8mm (0.55x0.79x0.23in)
• B: 21.5x21.7x8.5mm (0.85x0.85x0.33in)
• C: 40.5x17.4x6.5mm (1.59x0.69x0.26in)

Cable construction:

• Length: 0.5m (1.64ft)
• Standard: SATA III
• Colour: Red
• Type: Round / Flat
• Jacket Diameter: 2.0mm (0.08in) / 7.8x2.2mm (0.31x0.09in)
• Jacket Material: PVC
• Conductor Material: Tinned Copper
• Conductor Gauge: 18AWG / 26AWG

Specifications:

• Supported Bandwidth: 6Gbps
• Operating Temperature: -10°C - 80°C (14°F - 176°F)
• Storage Temperature: -20°C - 85°C (-4°F - 185°F)

Miscellaneous:

• Packaging Type: Polybag
• Warranty (Years): 10
• Product Compliance: RoHS, REACH

Purchasing Information:

• No.: 33365
• EAN: 4002888333658

This product is also available in other lengths:

• 33364 - 0.3m (0.98ft)
• 33365 - 0.5m (1.64ft)
