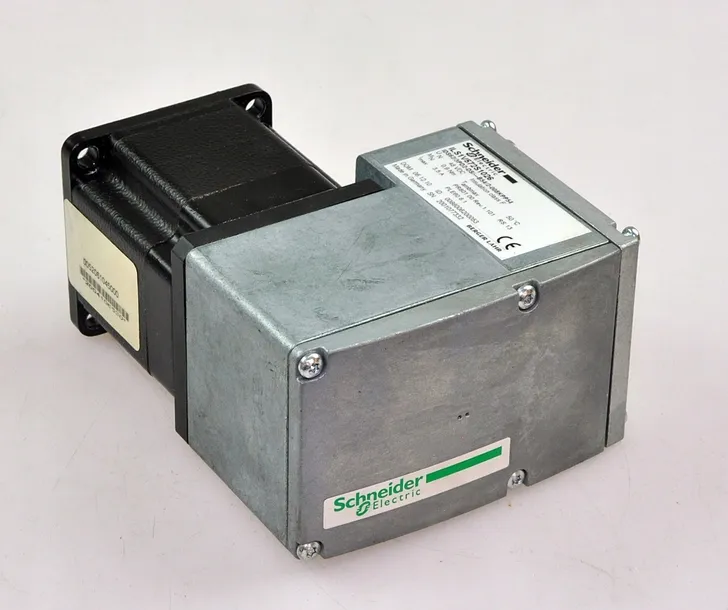

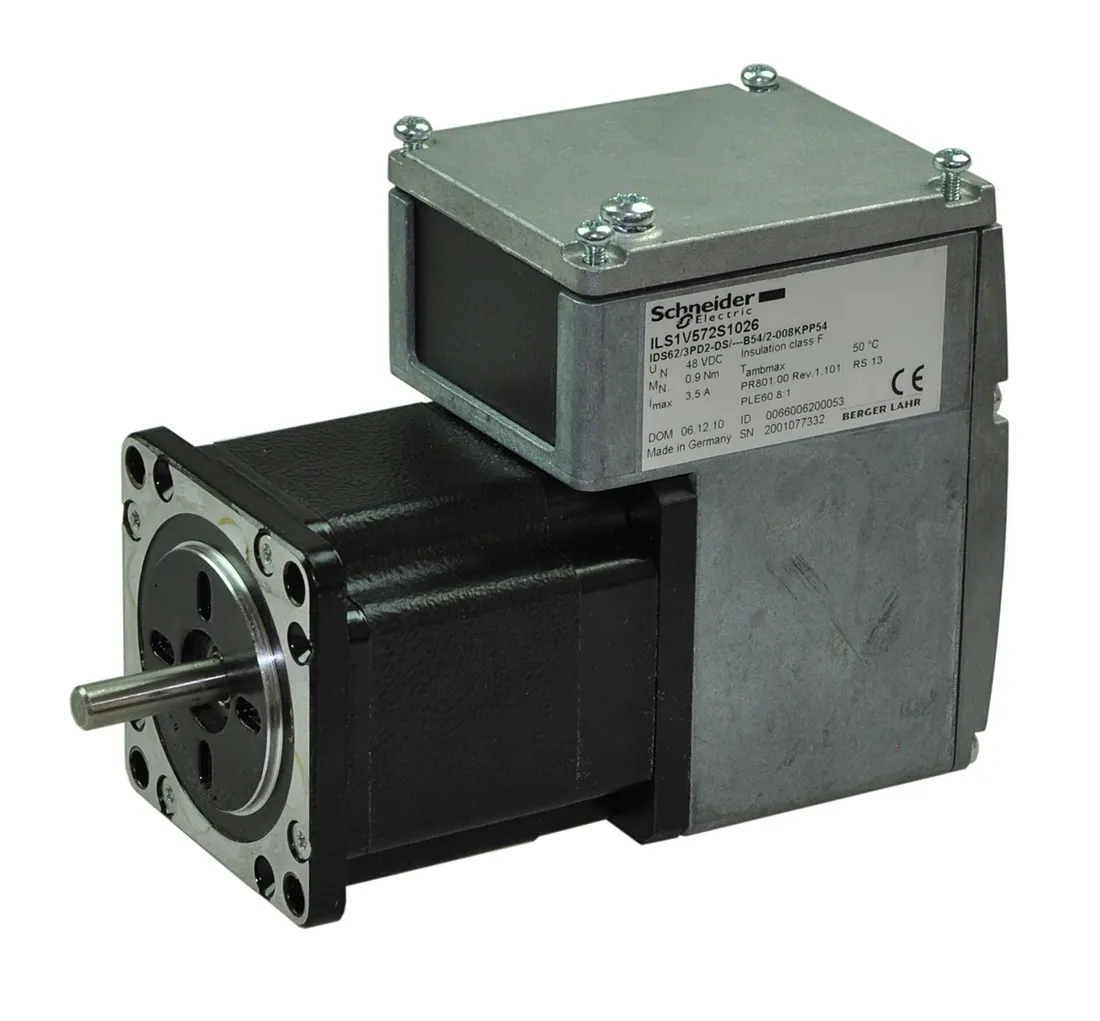

Silnik Schneider ILS1V572S1026

Schneider ILS1W572PB1A0

Integrated drive with stepper motor, 24 V (DC), 4 A, 1 Nm, 300 1/min,

Klasa: A++/ NOWY

OPIS PRODUKTU

Niestety brak opisu przedmiotu w języku polskim.

• Range of Product - Lexium integrated drive

  Product or Component Type - Motion integrated drive

  device short name - ILS

  Motor Type - 3-phase stepper motor

  number of motor poles - 6

  Phase - Single phase

  [Us] rated supply voltage - 36 V 24 V

  network type - DC

  communication interface - Pulse/direction 5 V RS422, Integrated

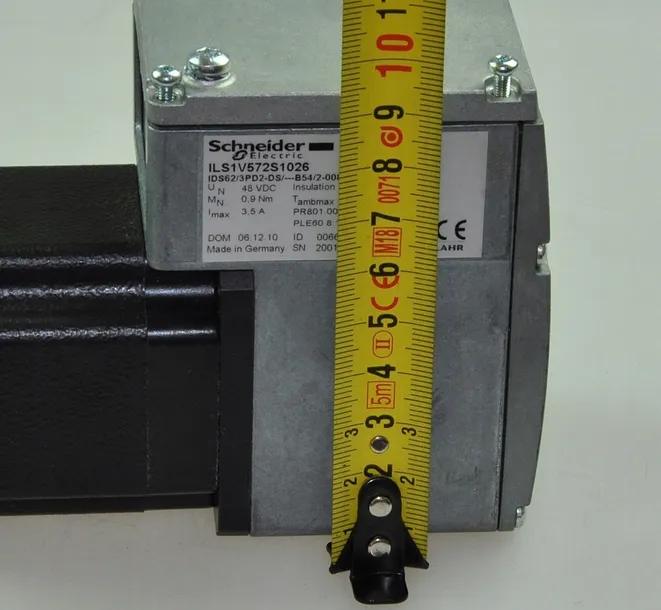

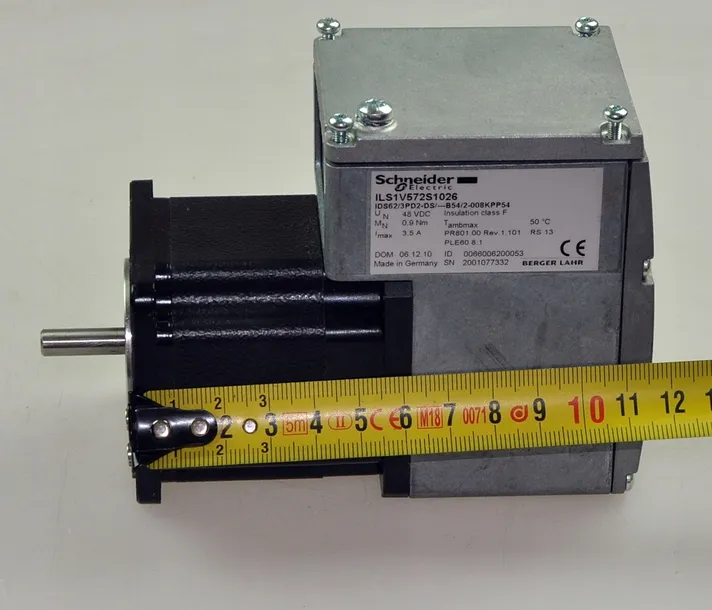

  Length - 4.56 in (115.9 mm)

  winding type - Medium speed of rotation and medium torque

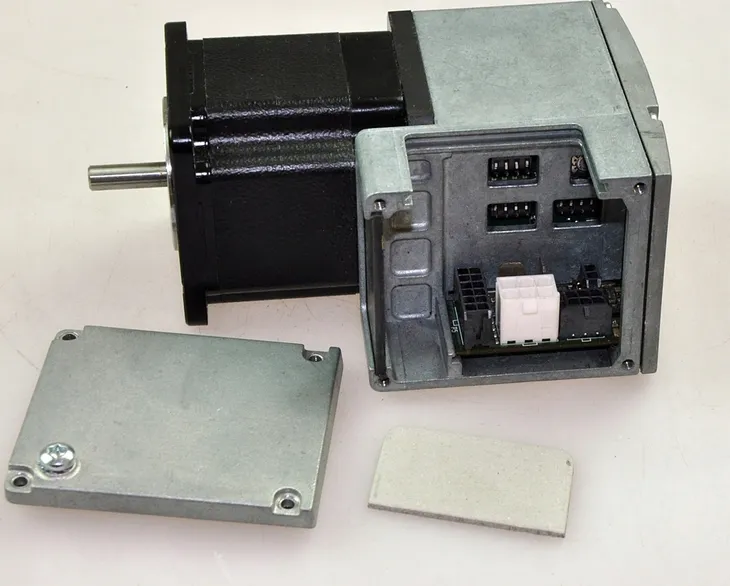

  Electrical Connection - Printed circuit board connector

  holding brake - Without

  gear box type - Without

  nominal speed - 300 rpm 24 V

  600 rpm 36 V - nominal torque

  7.97 lbf.in (0.9 N.m)

  holding torque

  9.03 lbf.in (1.02 N.m)
