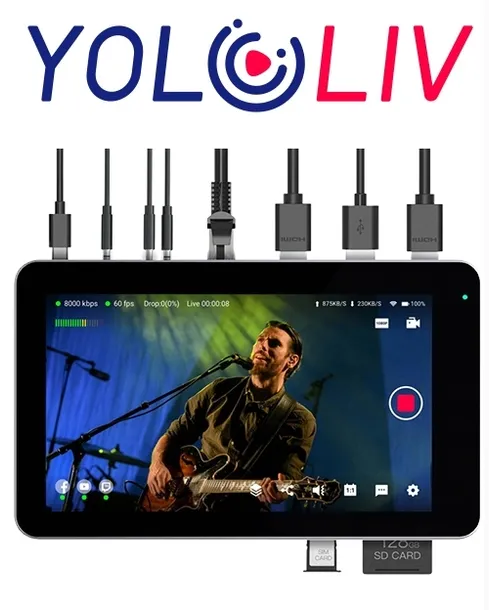

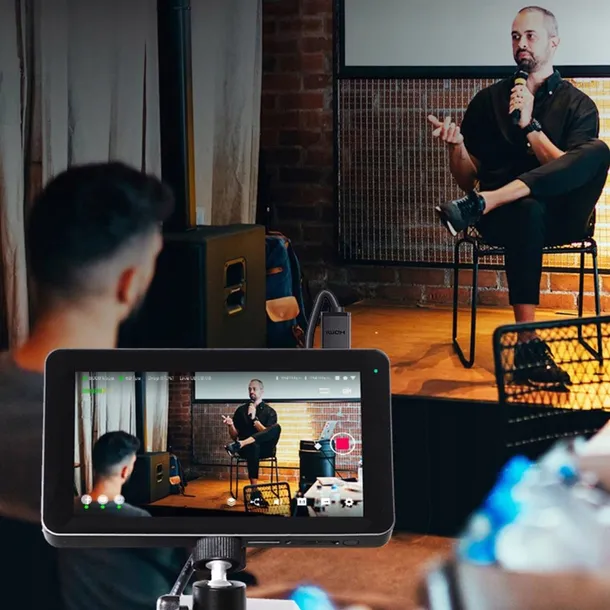

YoloBox Mini Portable Live Streaming Studio

YoloBox Mini Portable Live Streaming Studio

YoloBox Mini Portable Live Streaming Studio

Smart, Portable, All-In-One Live Streaming Encoder & Touchscreen Control Monitor.

Najważniejsze cechy:

Encoder, Monitor, Recorder, Multi-Sites Streamer In One

Intuitive 5.5" Touchscreen Control on Android OS

Stream via Ethernet, Wi-Fi, 4G LTE. Internal Battery

Stream at up to 1080p60. Supports H.264,

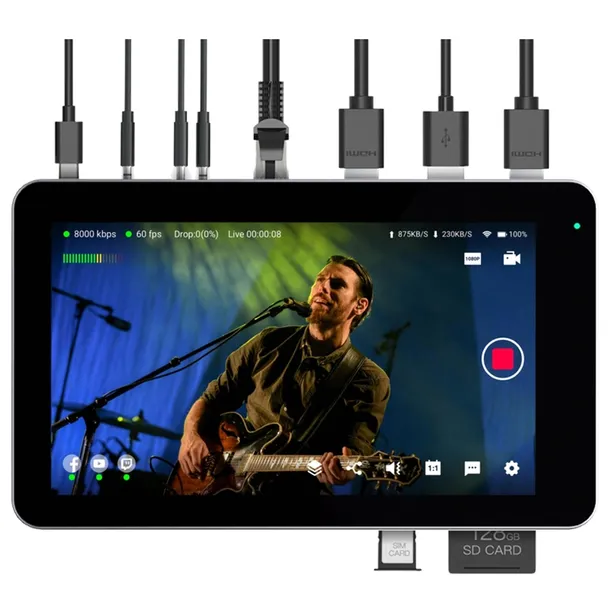

1 x HDMI, 1 x USB In, 1 x SD Card Input, Mic In, Line In

1 x HDMI Confidence Monitor Out, Audio Out

Built-In Lower-Thirds/Scoreboard/Graphic Overlays

Built-In Picture in Picture, Side-By-Side, Split-View

Add logos/comments to the stream

Same QualComm CPU as YoloBox Pro, 8-Core Processor

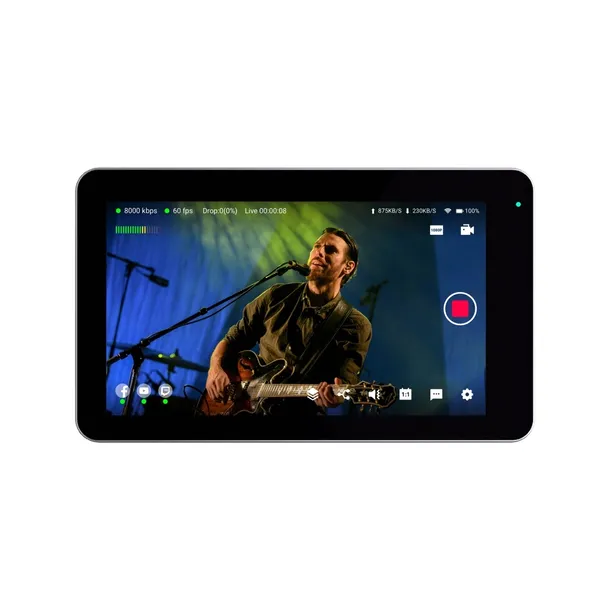

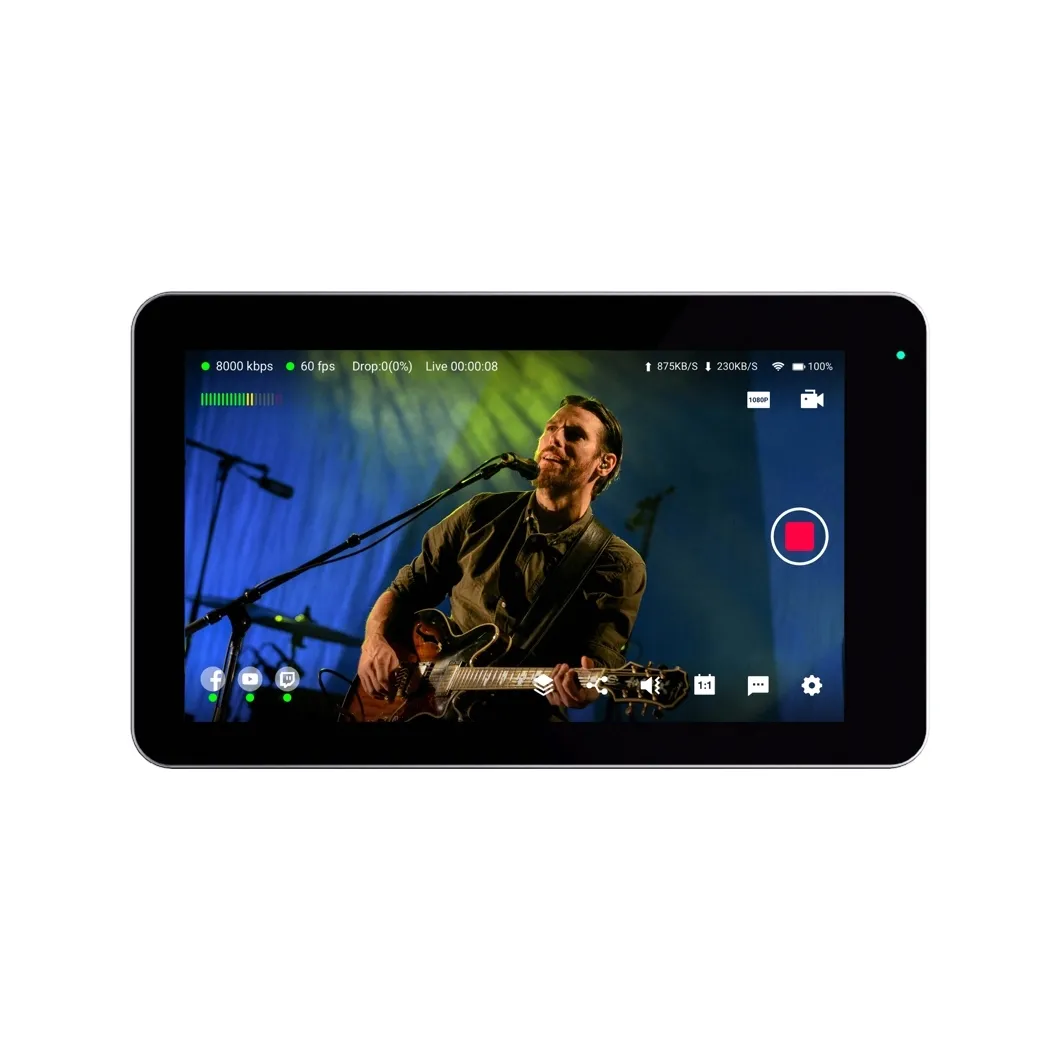

Touchscreen Control

The YoloBox Mini provides you with a touchscreen interface for easy streaming and control.

Functions

The device works as a switcher, with a variety of picture-in-picture templates as well as graphic layers. It has a built-in encoder that allows for live streaming, and it can record to optional SD cards.

Overlays

You can brand your live stream by adding logos/watermarks/rolling captions

Customized PiP options, including Interview mode, allow you to bring a unique look and feel to your stream

Engage with your audience in real time via feature comment overlays

The customizable scoreboard feature displays a real-time-controlled scoreboard for professional looking results

Built-in lower-thirds templates can be edited or you can add your own

Internet

You can connect to the internet using the integrated RJ45 (Ethernet) port, Wi-Fi, and via cell service using an optional SIM card.

Simultaneous Streaming

YoloBox Mini Mini Pro will first push your feed to the YoloLIV platform, from where it automatically forwards your feed to a maximum of 3 destinations simultaneously.

Use Only as a Monitor & Recorder

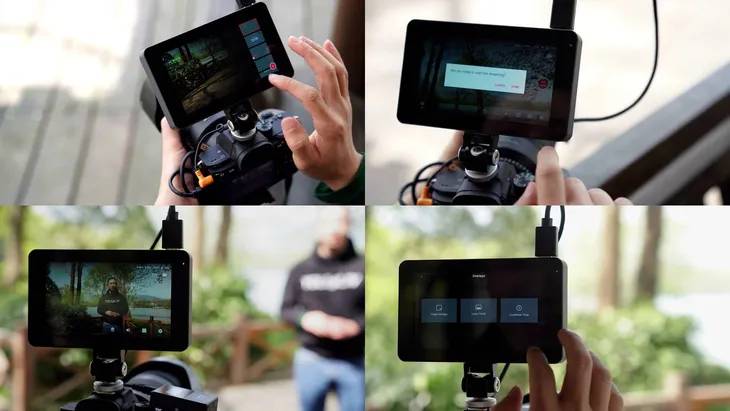

Utilize the device even when you are not live streaming. Record, switch, add overlays and transitions to level up your video production efficiency.

Streaming Platforms

SD Card Input

Roll in pre-recorded videos for intro, countdown, B-rolls, or special segments from an SD media card.

PDF

You can load a PDF as a local source to your YoloBox Mini.

Battery Life

The YoloBox Mini Mini charges via the USB-C connection, which is used for power only.

Introducing the most intuitive, multi-use, all-in-one live streaming encoder: YoloBox Mini is an encoder, monitor, recorder and multi-destinations streamer in one. It’s the industry’s first REALLY all-in-one live production system that doesn’t require anything external.

YoloBox Mini brings the professional features and processing power required for the most demanding live broadcasts.

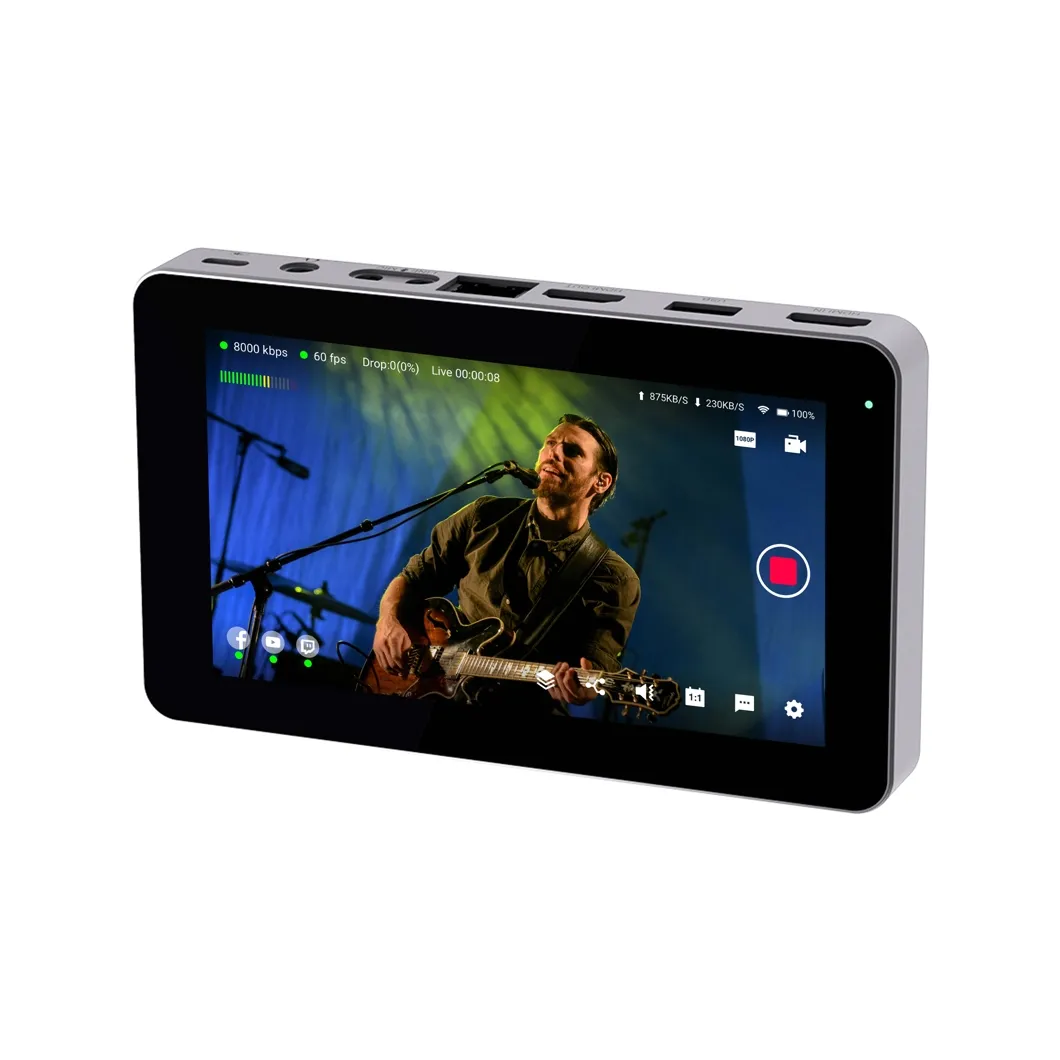

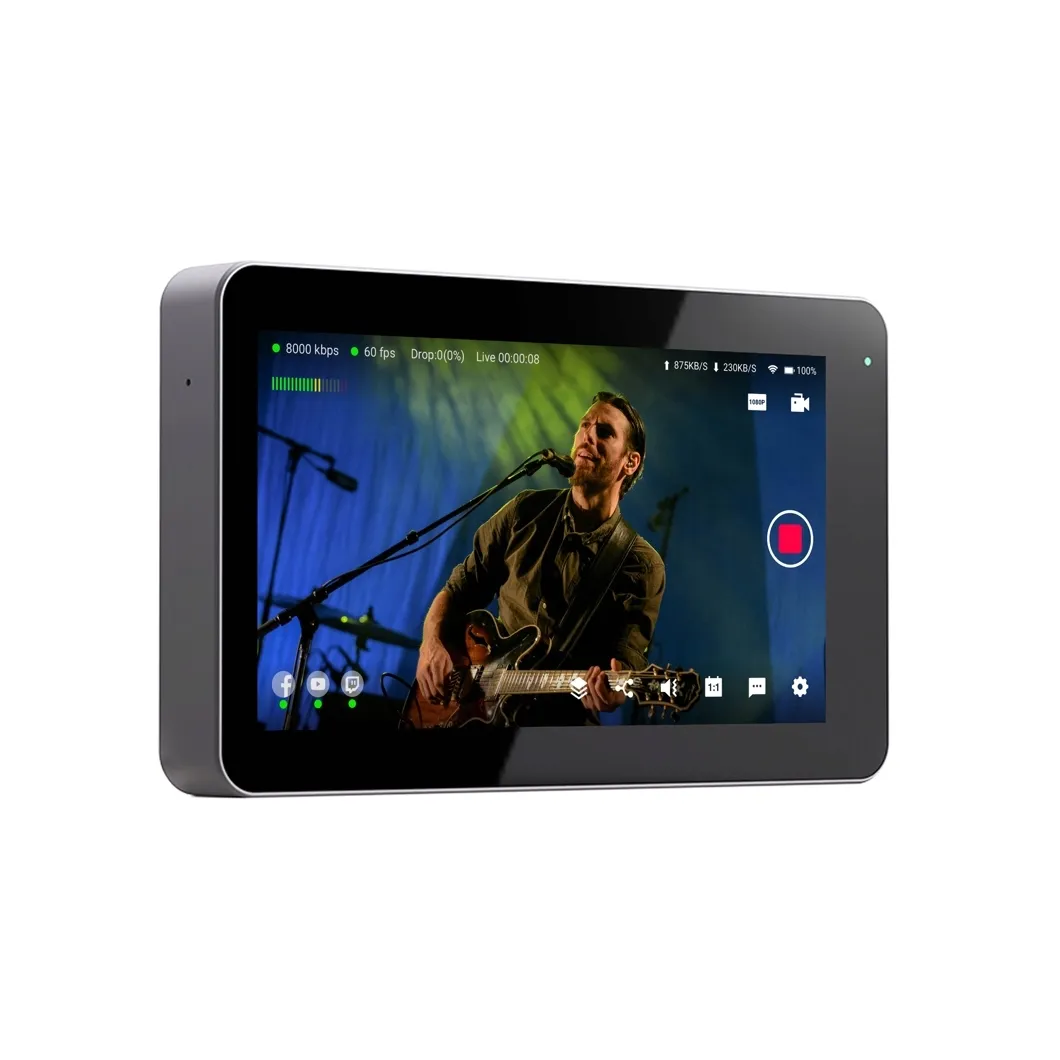

The YoloBox Mini is a 320g weight and 5.5" touchscreen display, featuring 1 HDMI input, 1 HDMI output, 1 USB-A input. The Mini supports input resolutions of 720p and 1080i/p, as well as streams of 540p, 720p, and 1080p60 at your choice, using the H.264 codec. With HDMI output, you can display your stream locally on an HDMI device. It also has a line-level audio input, and a separate headphone audio out. You can record your stream directly in the .mp4 format to an optional SD card, up to 128 GB in size, using the built-in SD card slot. The line-in allows you to connect with the synthesizer and mic-in can be connected to the microphone for recording.

(Please check out YoloBox Pro if you are looking for more HDMI inputs and video switching features)

Technical Specifications:

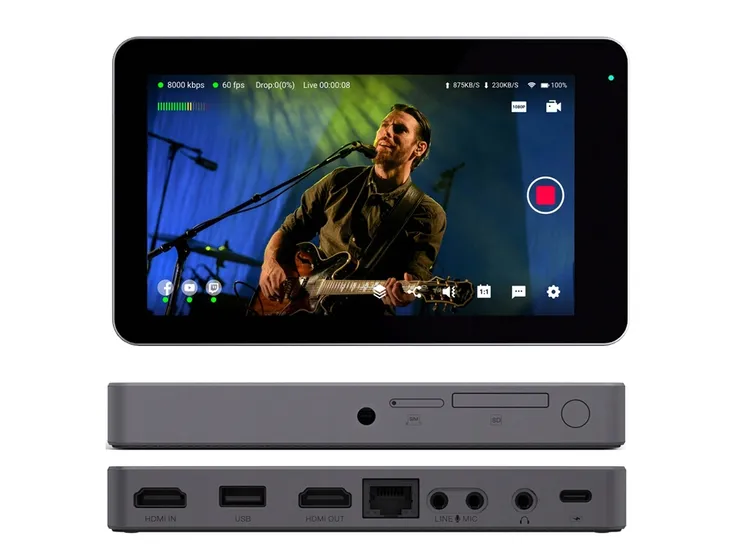

Interfaces: HDMI IN 1, USB-A3.0, HDMI OUT, Ethernet; LINE IN (3.5mm), MIC IN (3.5mm), AUDIO OUT (3.5mm), Nano-SIM Card Holder, 1/4'' Screw Hole, SD Card Holder, USB Type-C (Only for charging)

Input Power: DC5V/2.5A, DC9V/2A, DC12V/1.5A

Power Consumption: ＜18W

Power Supply: USB Type-C

USB Rated Output: USB-A: DC5V/1A

Battery Capacity: 4700mAh

Dimensions (LxWxH): 155x92,6x20mm

Net Weight: 320g

Monitor Screen Size: 5.5" LCD Resolution: 720*1280

Local Video Inputs: HDMI, USB3.0

Video Over Ethernet: RTMP/RTMPS

Video Input Connectors: HDMI, USB-A, RJ-45

Video Input Aspect Ratios: 4:3,16:9

Video Input Deinterlacing: Yes

Live Broadcast Video Input Resolution: 480p/720p/1080p (up to 60fps)

Video Encoded Format: H.264

Video processing Bitrate control: CQ, VBR, CBR

Hardware-Accelerated Video Encoding: Optional

Video Output Signal Types: FLV-RTMP, HDMI, UVC

Video Output Connectors: HDMI, USB-A

Video Output Streaming protocols: RTMP, RTMPS, MJPEG

Live Broadcast Video Output Resolution: 480p/720p/1080p (up to 60fps)

Analog Audio Input Connectors: Line In, Mic In 3.5mm

Digital Audio Inputs: USB, HDMI, RTMP (From internet), Local video (From SD card)

Digital Audio Input Connectors: USB-A, HDMI

Audio Input Mute: Yes

Audio Input Format: 32KHZ / 44.1KHZ / 48KHZ: 16bit

Audio Encoded Format:（AAC) 44.1K 2Ch 16bit

Analog Audio Output: 3.5mm headphone jack

Digital Audio Outputs: HDMI audio (Embedded), USB Audio (Embedded)

Record Formats: MP4

Wi-Fi: 2.4G/5G

4G Network: 4G Network Countries & Frequency Band For

Users: [NA: Variant for North America（US / Canada / Mexico)］

B2/B4/B5/B7/B12/B13/B14/B17/B25/B26

Notes: Mex...
