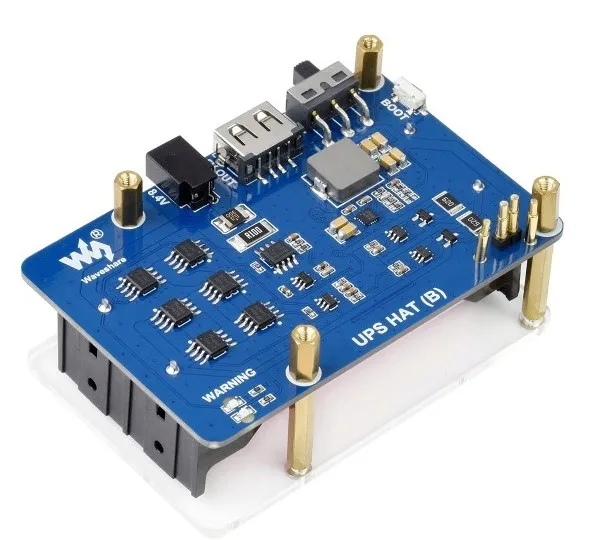

Zasilacz WaveShare UPS HAT (B) (EU)

Uninterruptible Power Supply For Raspberry Pi

Power Your Pi Seamlessly From Power Connection OR The Backup Batteries

5A high current, pogo pins connector

• Designed for Raspberry Pi series, compatible with Raspberry Pi 3 / 3B+ / 4B, etc.

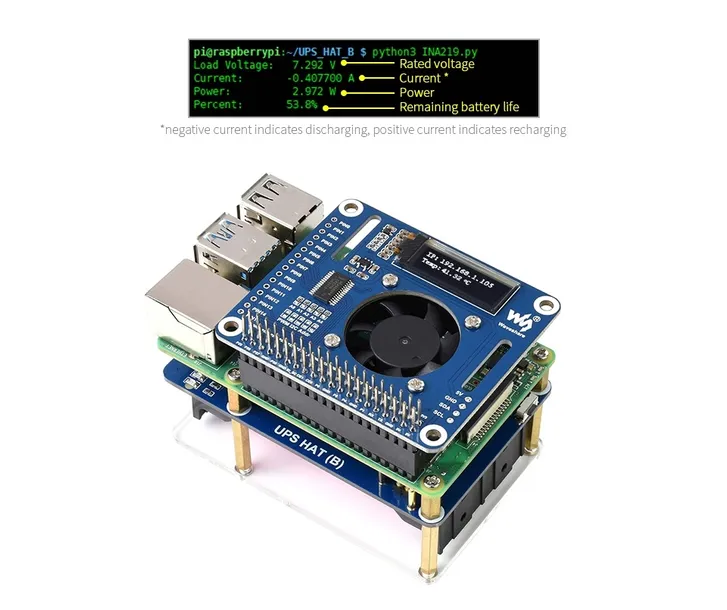

• I2C bus communication, monitoring the batteries voltage, current, power, and remaining capacity in real time
• Multi battery protection circuits: over charge/discharge protection, over current protection, short circuit protection, and reverse protection, along with the equalizing charge feature, more safe and stable
• Onboard 5V regulator, up to 5A continuous output current, more sufficient power source for Raspberry Pi
• 5V USB output, convenient for powering other boards
• Batteries warning indicators, easy to check if the battery is connected correctly
• Comes with development resources and manual

Pogo Pins Connector

Powering The Raspberry Pi Via Pogo Pins, Without Using Any GPIO Resource,

Compatible With Raspberry Pi 3 / 3B+ / 4B, Etc.

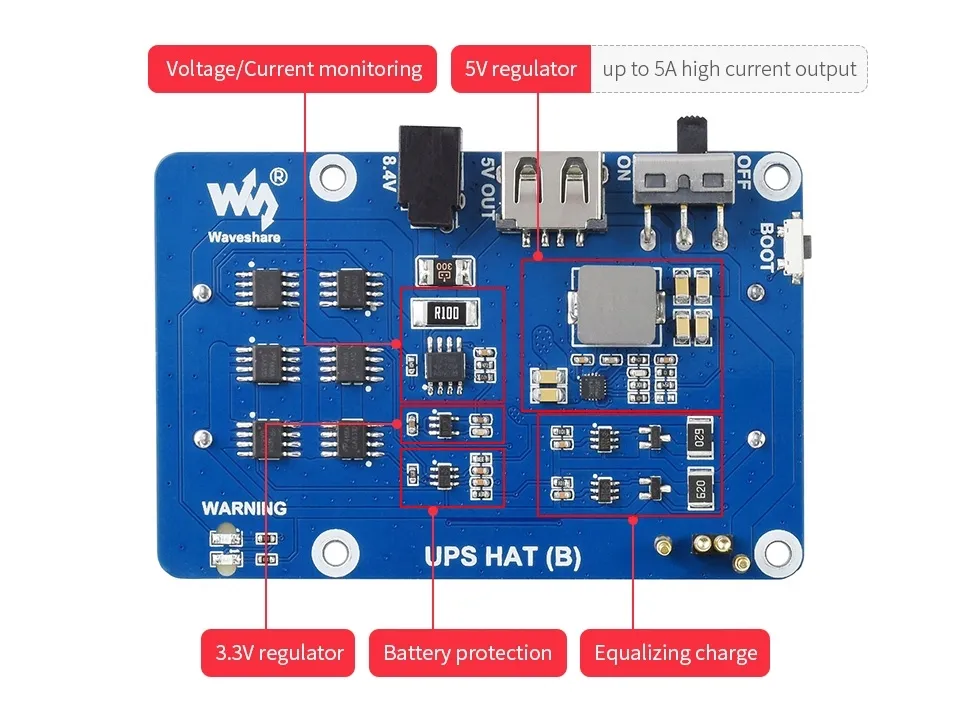

Safe And Stable Circuit Design

Protection Circuits For Over Charge/Discharge, Over Current, Short Circuit, And Reverse

Along With The Equalizing Charge Feature, More Safe And Stable

Battery Warning Indicators

Easy To Check If The Battery Is Connected Correctly

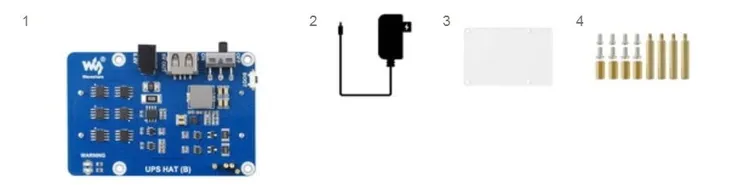

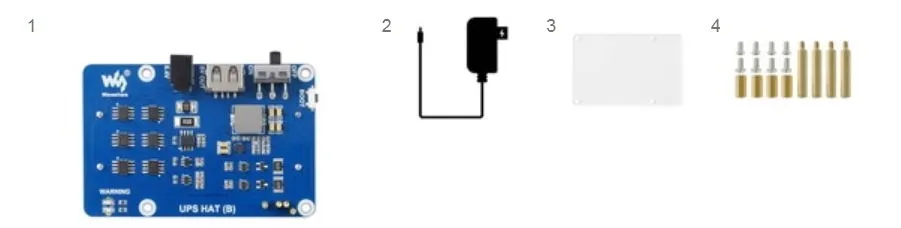

W zestawie:

1. UPS HAT (B) x1
2. 8.4V battery charger x1
3. Acrylic protection panel x1
4. Screws pack x1

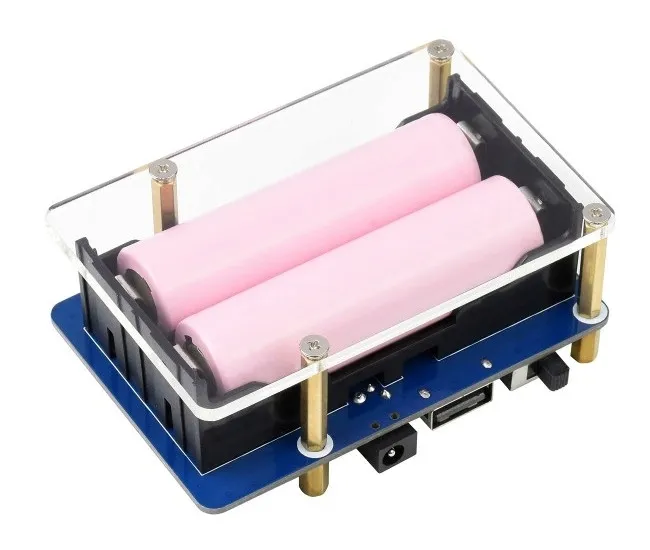

Akumulatory 18650 nie wchodzą w skład sprzedawanego zestawu.

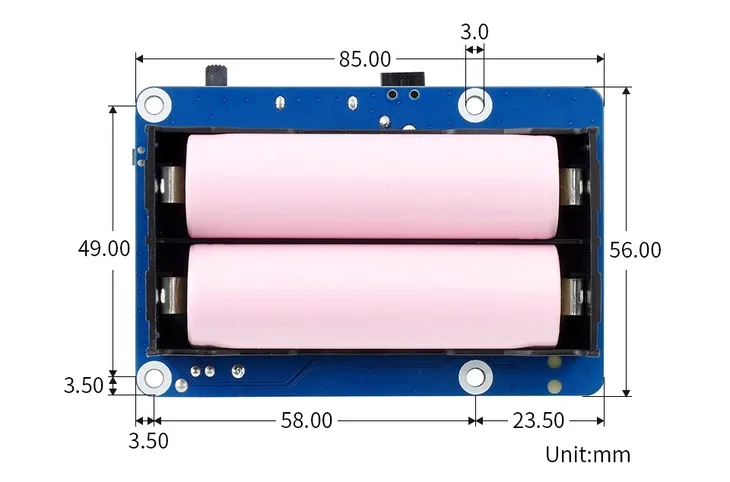

Długość akumulatra nie powinna przekraczać 67mm.

The 18650 batteries are NOT included

Please note that the battery length SHOULD be less than 67mm, some batteries with protection plate in the market are NOT supported,
