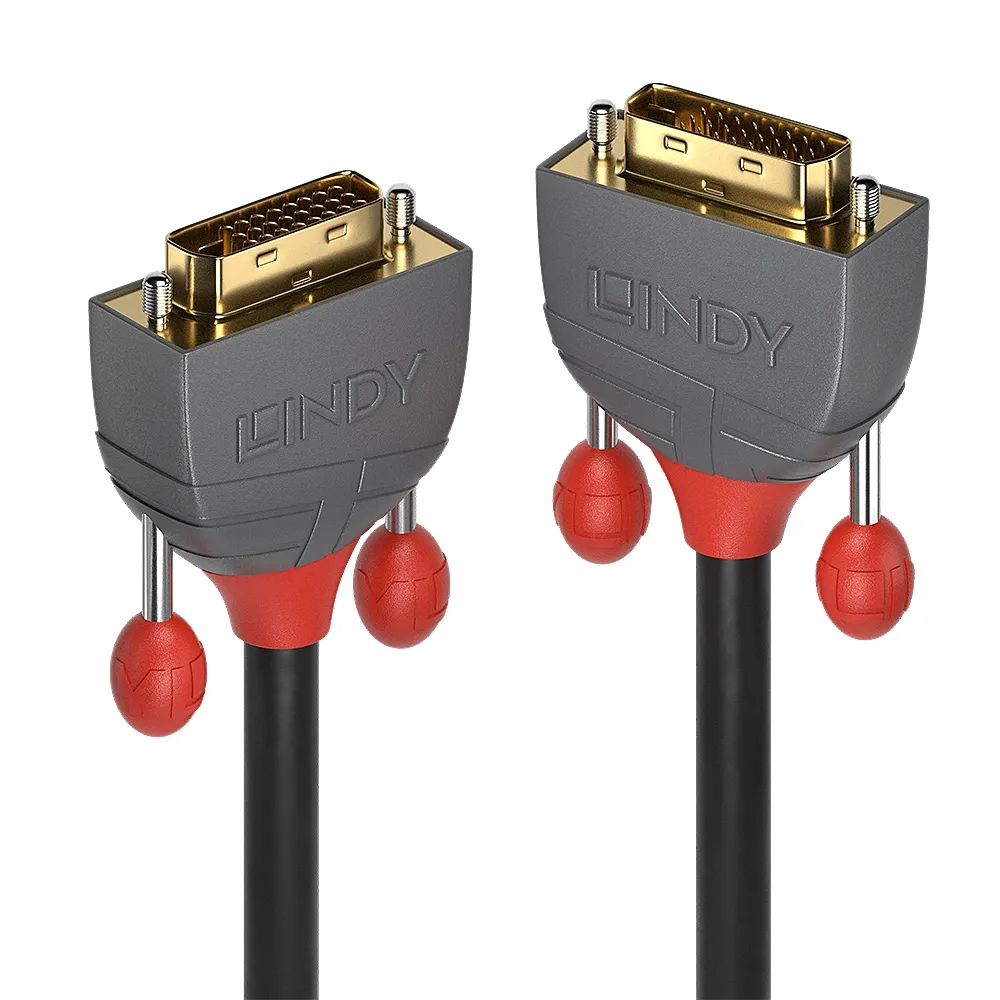

20m DVI-D SLD Dual Link Cable, Anthra Line

20m DVI-D SLD Dual Link Cable, Anthra Line

Numer Katalogowy Produktu: L36228

Numer EAN: 4002888362283

OPIS PRODUKTU:Connectors

• Connector A: DVI-D Male (Dual Link)
• Connector B: DVI-D Male (Dual Link)
• Housing Material: PVC
• Connector Plating: 24K Gold 1?m
• Pin Construction: Brass
• Pin Plating: 24K Gold 1?m
• Dimensions (approx.) WxDxH: 39.5x16.5x44.5mm (1.56x0.65x1.75in)

Cable Construction

• Length: 20m (65.62ft)
• Standard: DVI-D Dual Link
• Colour: Black
• Type: Round
• Jacket Diameter: 12.0mm (0.47in)
• Jacket Material: PVC
• Conductor Material: Bare Copper
• Conductor Gauge: 24AWG
• Shielding: Aluminium Magnesium Braid 75%

Specifications

• Supported Bandwidth: 9.9 Gbps
• Maximum Resolution: 2560x1600@60Hz
• Nominal Attenuation: 1 - 825Mhz < 8db
• Minimum Bend Radius: 120mm (4.72in)
• Operating Temperature: -20°C - 80°C (-4°F - 176°F)
• Storage Temperature: -25°C - 85°C (-13°F - 185°F)

Miscellaneous

• Packaging Type: Polybag
• Warranty (Years): 10
• Product Compliance: RoHS, REACH, UL

Purchasing Information

• No. 36228
• EAN: 4002888362283

This product is also available in other lengths

• 36220 - 0.5m (1.64ft)
• 36221 - 1m (3.28ft)
• 36222 - 2m (6.56ft)
• 36223 - 3m (9.84ft)
• 36224 - 5m (16.40ft)
• 36225 - 7.5m (24.61ft)
• 36226 - 10m (32.81ft)
• 36227 - 15m (49.21ft)
