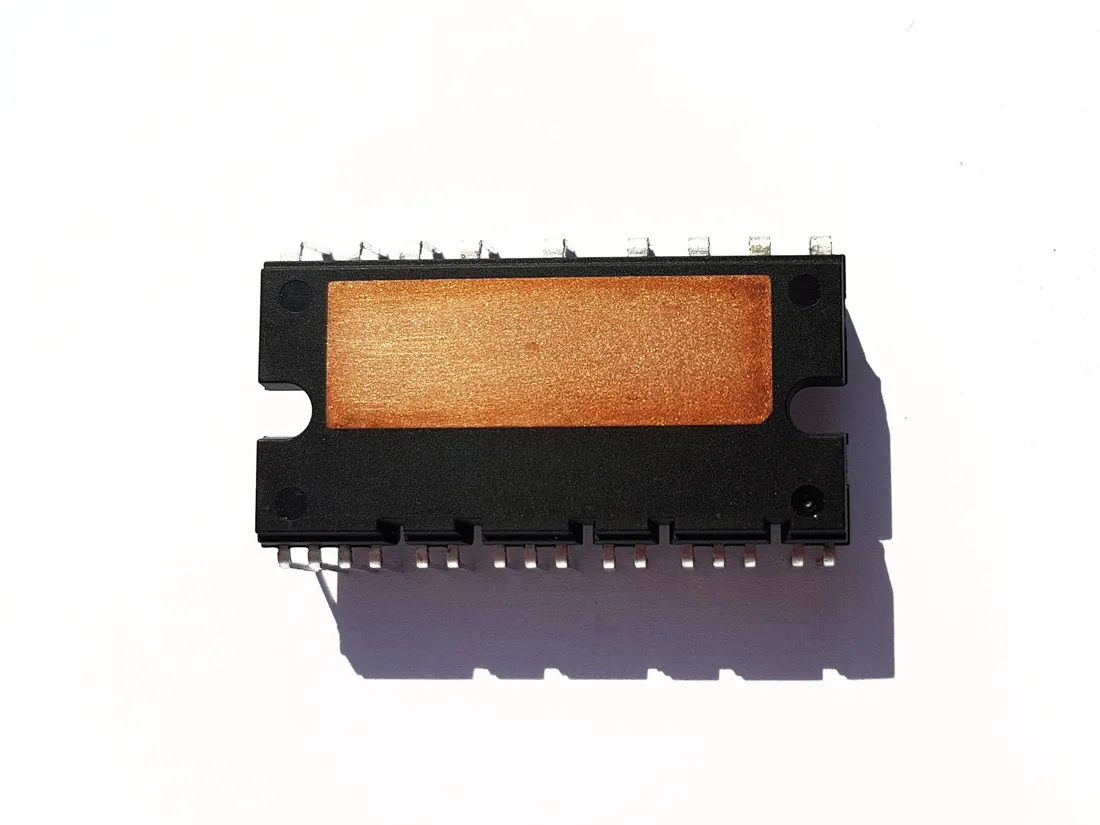

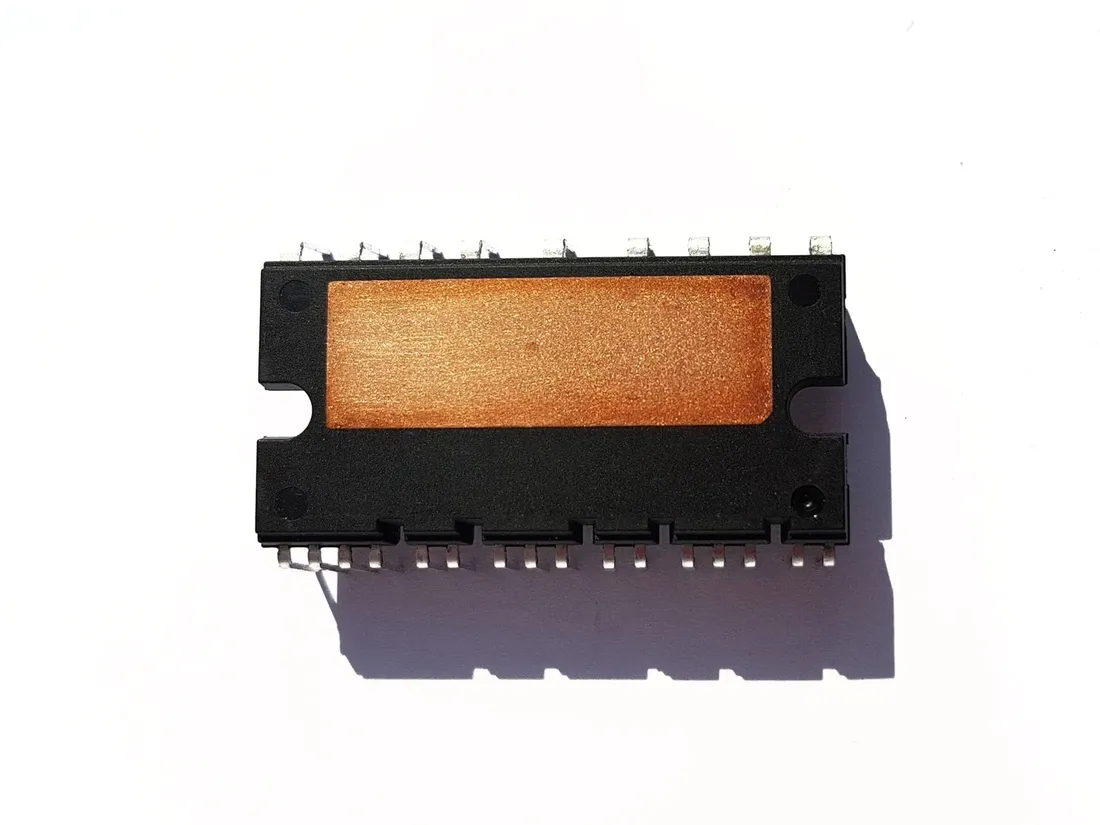

GIPS10K60T

3 fazowy driver do sterowania silników indukcyjnych o mocy do 1kW.

• IPM 10 A, 600 V 3-phase IGBT inverter bridge

including control ICs for gate driving and freewheeling

diodes

• Short-circuit rugged IGBTs

• VCE(sat) negative temperature coefficient

• 3.3 V, 5 V, 15 V CMOS/TTL inputs

comparators with hysteresis and pull-down /

pull-up resistors

• Undervoltage lockout

• Internal bootstrap diode

• Interlocking function

• Shut down function

• DBC substrate leading to low thermal

resistance

• Isolation rating of 2500 Vrms/min

• 4.7 kΩ NTC for temperature control
