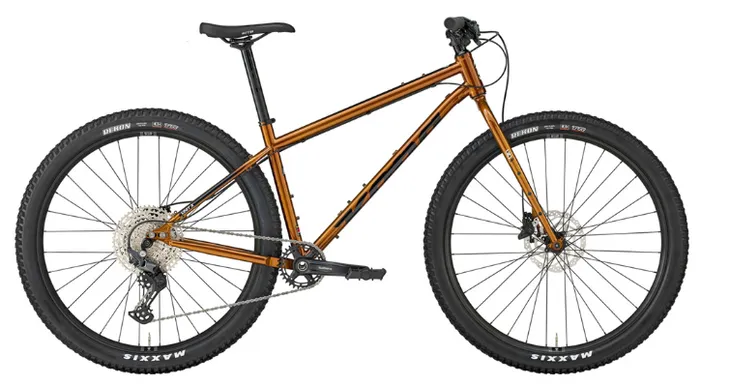

Rower KONA UNIT X gold S/15"

FRAME MATERIAL

Reynolds 520 Butted Cromoly

SIZES

S, M, L, XL

REAR SHOCK

n/a

FORK

Kona Plus Fork 110mm spacing

CRANKARMS

Prowheel 12spd

CHAINRINGS

32t

B/B

Prowheel 73mm

PEDALS

n/a

CHAIN

Shimano Deore 12spd

CASSETTE

Shimano Deore 10-51t 12spd

CHAINGUIDE

n/a

F/D

n/a

R/D

Shimano Deore

SHIFTERS

Shimano Deore 12spd

BRAKE CALIPERS

Shimano MT410 Hydraulic

FRONT BRAKE ROTOR

Shimano RT10 180mm (centerlock)

REAR BRAKE ROTOR

Shimano RT10 160mm (centerlock)

BRAKE LEVERS

Shimano MT410 Hydraulic

HEADSET

TH ZST No.10

HANDLEBAR

Kona XC/BC Riser

STEM

Kona XC/BC

SEATPOST

Kona Thumb w/Offset 31.6mm

SEAT CLAMP

Kona Clamp

GRIPS

Kona Key Grip

SADDLE

WTB Volt

FRONT HUB

Formula 110x15mm (centerlock)

REAR HUB

Shimano 148x12mm (centerlock)

SPOKES

Stainless Black 14g

RIMS

WTB ST i30 2.0 TCS

FRONT TIRE

Maxxis Rekon TR 29x2.6" or WTB Ranger TCS 29x2.6"

REAR TIRE

Maxxis Rekon TR 29x2.6" or WTB Ranger TCS 29x2.6"

PAINT COLOR

Gloss Metallic Gold w/ Black & Concrete Decals

GEOMETRY  mm

SIZE

S

M

L

XL

1

STL

370

420

470

530

2

TTL

582

610

637

675

3

REACH

425

450

475

510

4

STACK

588

597

606

615

5

SO

695

731

768

810

6

HTA

68.0

68.0

68.0

68.0

7

HTL

110

120

130

140

8

STA

75.0

75.0

75.0

75.0

9

CSL

430

430

430

430

10

BBD

65

65

65

65

11

BBH

310

310

310

310

12

WB

1115

1144

1173

1211

13

FC

693

722

750

789

14

FL

470

470

470

470

15

OF

50

50

50

50
