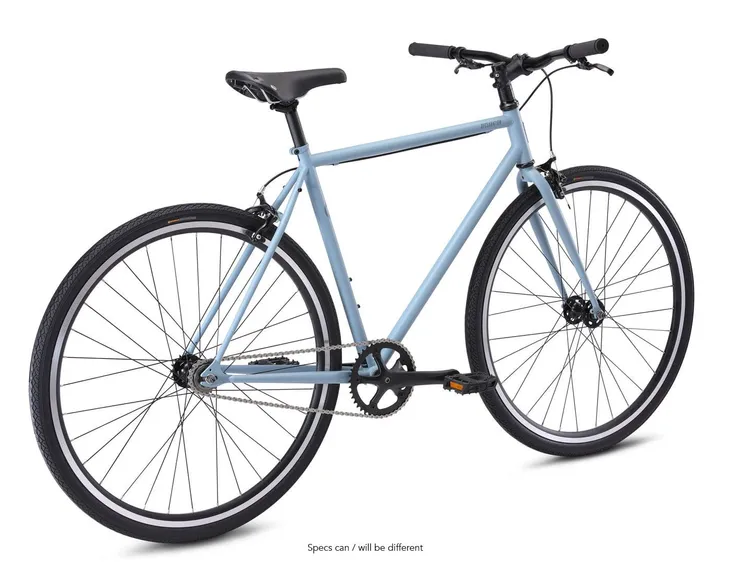

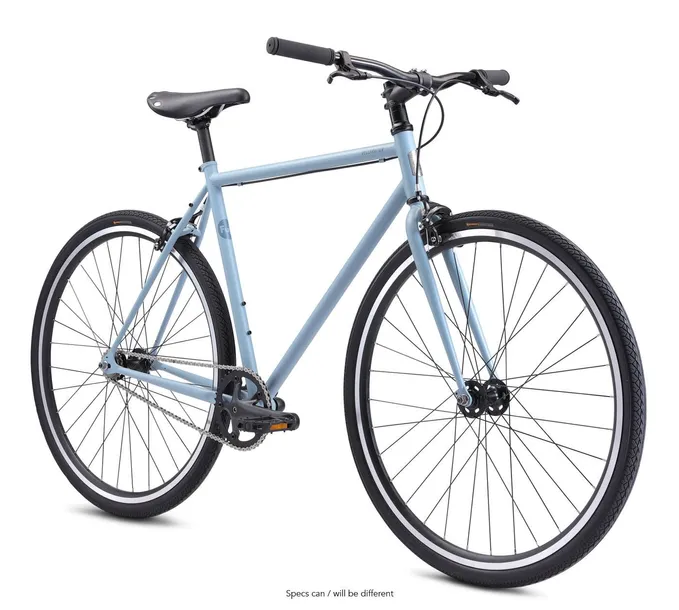

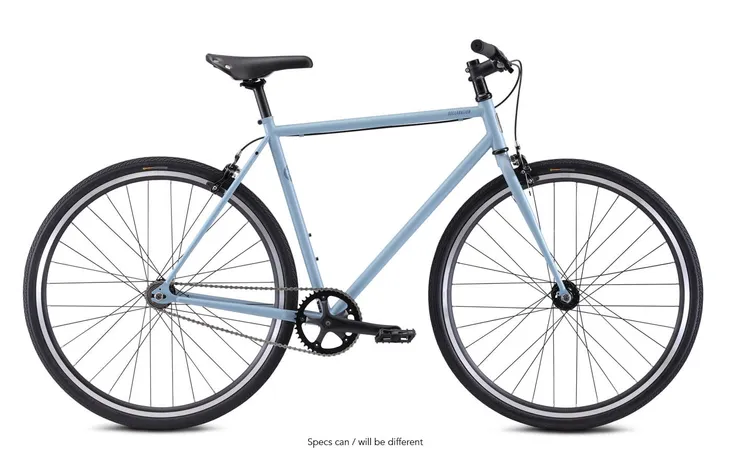

Rower singlespeed Fuji DECLARATION 2022 blue 48cm

Frame:

Fuji Hi-ten steel, BSA68mm BB

Fork:

Fuji Hi-ten steel

Bottom Bracket:

Sealed cartridge bearing

Pedals:

Resin platform

Crank:

Single, 44T

Cassette:

17T fixed cog/ 17T freewheel

Chain:

KMC S1

Wheelset:

High-flange 32H alloy sealed bearing hubs, stainless spokes, Double wall rims

Tires:

CST, 38-622

Brakes:

Alloy dual pivot caliper

Brake Levers:

Alloy

Headset:

1-1/8“ threadless

Handlebar:

Alloy riser, 20mm rise, 15° sweep

Stem:

Alloy, 7° rise, 31.8mm

Grips:

Dual lock-on

Saddle:

Retro rivet

Seat post:

Alloy, 27.2mm

Weight:

12.03 kg

GEOMETRY

Size

XS

S

M

L

XL

Bike Size

49cm

52cm

55cm

568m

61cm

Seat Tube Center To Top

490

520

550

580

610

Top Tube Effective

553

562

573

579

586

Head Tube Length

90

95

125

155

185

Seat Tube Angle

73°

74°

74°

74°

74°

Headtube Angle

72°

72°

72°

72°

72°

Chainstay Length

420

420

420

420

420

Wheelbase

1006

1016

1028

1036

1044

Bottom Bracket Drop

50

58

58

58

58

Standover

758

775

802

833

855

Stem

90

90

110

110

110

Handlebar Width

580

580

580

580

580

Crank

165

165

170

170

170

Wheel Size

700c

700c

700c

700c

700c

Seat Post Diameter

27.2

27.2

27.2

27.2

27.2
