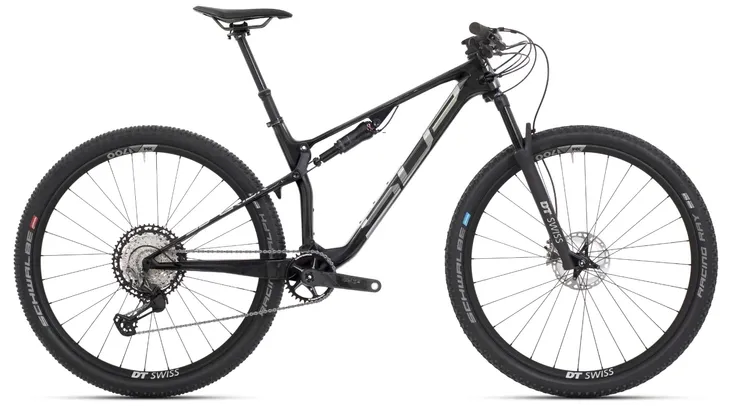

Rower SUPERIOR Team XF 29 Issue matte carbon 17"

Bike tested by the World Cup Races. The best carbon frame weighing 1717 grams, Shimano XT racing gear with 1x12 gears, suspension DT Swiss 110 and 105 mm of travel with lockout control from carbon bars, DT Swiss carbon wheelset, dropper post, Acros headset with BlockLock. Developed for the sole purpose of getting the best out of you.

RAMA

RAMA

Carbon MTB Race Pro SU-01, Advanced Race Geometry, Travel 100 mm, Tapered Head Tube, BB92, 3D alloy one piece link, Carbon swingarm, SR dropout, Boost Thru Axle 12x148 mm, Inner cable routing, Dropped seat post ready

AMORTYZATOR

DT Swiss F232 ONE, Tapered, 15x110mm axle, 110mm travel

AMORTYZATOR TYŁ

DT Swiss R232 ONE, size 190x45mm

WKŁAD SUPORTU

Race Face BB92, PressFit, shell 41x92mm

GŁÓWKA

ACROS AZX-220 R4, ZS44/28.6 - ZS56/40, BlockLock 150°

TYLNA OŚ

SB01, TA12x171.5, M12xP1.5x15.5L, Black

NAPĘD

PRZEKŁADNIA

SHIMANO XTR SL-M9100-IR, RAPIDFIRE Plus, 12-speed

TYLNA PRZERZUTKA

SHIMANO XTR RD-M9100, Shadow Plus Design

ZĘBATKA

Race Face NEXT SL, 34T

KASETA

SHIMANO XT CS-M8100, 12-speed, 10-51T

ŁAŃCUCK

SHIMANO XT CN-M8100

HAMULCE

PRZEDNI HAMULEC

SHIMANO XTR M9100, hydraulic disc brake

PRZEDNIA TARCZA

SHIMANO RT-MT800, 160mm

HAMULEC TYŁ

SHIMANO XTR M9100, hydraulic disc brake

TARCZA TYŁ

SHIMANO RT-MT800, 160mm

KOŁA

KOŁO PRZÓD

DT Swiss XM 1700 SPLINE®, CL, 15x110mm, Tubeless Ready

KOŁO TYŁ

DT Swiss XM 1700 SPLINE®, CL, 12x148mm, SH12, Tubeless Ready

PRZEDNIA OPONA

Schwalbe Racing Ray Evo, SuperGround, TL-Easy, 29x2.25", ADDIX SpeedGrip

OPONA TYLNA

Schwalbe Racing Ralph Evo, SuperGround, TL-Easy, 29x2.25", ADDIX Speed

KOKPIT

MOSTEK

ONE Race, Alloy, 31,8mm, -7°

KIEROWNICA

ONE Race, Carbon, 760mm, 31.8mm

LEWY CHWYT

ONE Race, Lock-On

PRAWY CHWYT

ONE Race, Lock-On

CZĘŚCI

SIODEŁKO

Fizi:k Terra Argo X5, Alloy

DŹWIGNIA WSPORNIKA

SHIMANO SL-MT500-L, Seat post lever

WSPORNIK SIODEŁKA

Crankbrothers Highline 7 dropper post, 30.9mm

ZACISK WSPORNIKA

ONE CC-904A, 34,9mm, Full CNC mahined, Black

GEOMETRIA: TEAM XF 29 ISSUE

ROZMIAR RAMY

15.5" (S)

17.5" (M)

19.0" (L)

21.0" (XL)

BBD BB DROP (mm)

40

40

40

40

WHEEL SIZE

29

29

29

29

A SEAT TUBE LENGTH (mm)

393

431

482

533

B EFFECTIVE TOP TUBE LENGTH (mm)

584

610

630

650

S STACK HEIGHT (mm)

579

589

597

607

R REACH (mm)

427

449

465

482

C SEAT TUBE ANGLE

74,9°

74,7°

74,6°

74,5°

D HEAD TUBE ANGLE

68°

68°

68°

68°

RC REAR CENTER (mm)

428

428

428

428

G HEAD TUBE LENGTH (mm)

90

100

110

120

F WHEELBASE (mm)

1124

1149

1169

1189
