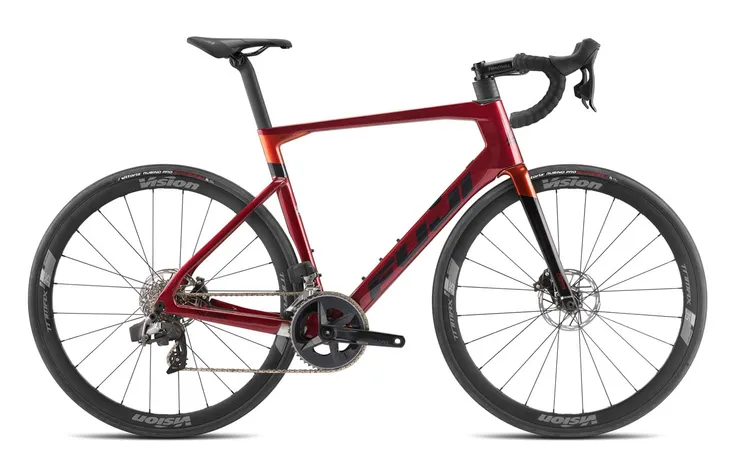

Rower FUJI TRANSONIC 2.1 Disc 58cm

Frame:

C10 high-modulus carbon, integrated and tapered head tube, PF30 68mm BB, 12x142mm thru-axle

Fork:

C10 carbon monocoque, tapered carbon steerer, 12x100mm thru-axle

Bottom Bracket:

SRAM PF30 DUB

Front derailleur:

SRAM Rival AXS

Crank:

SRAM Rival AXS DUB, 48/35T

Rear derailleur:

SRAM Rival AXS

Shift lever:

SRAM Rival AXS, 2x12-speed

Cassette:

SRAM PG-1250, 10-30T

Chain:

SRAM Rival

Wheelset:

Vision Tech Trimax 35 Disc, alloy, tubeless ready

Tires:

Vittoria Rubino Pro IV, G2.0, 28-622

Brakes:

SRAM hydraulic, 160mm rotors

Brake Levers:

SRAM Rival AXS hydraulic

Headset:

FSA, 1 1/4“ upper - 1 1/2“ lower, integrated

Handlebar:

Oval Concepts 310 Ergo, 6061 alloy, 31.8mm clamp, 133mm drop, 4° sweep

Stem:

Oval Concepts 313, 3D-forged 6061, +/-6°

Grips:

Selle Italia Smootape Corsa

Saddle:

Selle Italia X3 Boost

Seat post:

Transonic Aero Carbon

Derailleur hanger:

D044

GEOMETRY

Size

XXS

XS

S

M

L

XL

XXL

A

Seat Tube Center To Top

440

457

484

503

520

538

567

B

Seat Tube Effective

460

490

520

540

560

580

610

C

Top Tube Effective

500

515

537

552

565

581

600

D

Head Tube Length

93

109

129

145

166

183

203

E

Seat Tube Angle

74.75°

74.3°

74.2°

74.2°

73.5°

73.5°

73°

G

Headtube Angle

70.6

71

72

72.7

73

73

73

H

Chainstay Length

410

410

410

410

410

410

410

I

Wheelbase

971.3

982

988

989

999

1016

1030

J

Bottom Bracket Drop

73

70

70

68

68

66

66

K

Fork Offset

52

52

52

43

43

43

43

L

Trail

63.72

61.21

54.98

60.08

58.22

58.22

58.22

M

Stack

487

500

523

541

562

576.5

596

N

Reach

367

374

382

392

399

410

418

O

Standover

730

747

772

788

806

824

846

Stem

70

90

90

100

110

120

120

Handlebar Width

380

400

400

420

420

440

440

Crank

165

170

170

172.5

172.5

175

175

Wheel Size

700

700

700

700

700

700

700

Seat Post Diameter

N/A

N/A

N/A

N/A

N/A

N/A

N/A
